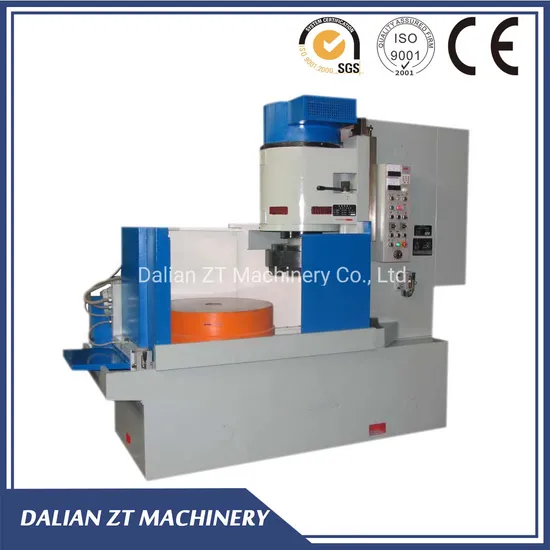

Rotary Table Vertical Spindle Surface Grinding Machine M7480

Product Description

Features:
The grinding range is from Φ500mm to Φ1600mm. is a high-efficiency grinder with round electro-magnetic worktable and vertical wheelhead, with its wheel end-face for flat-surface grinding, so it is used for rough-grinding of stock or rapid-grinding for moderate accuracy, suitable for batch production workshop. If fine-grit wheel is provided, the machine can also be applied for grinding higher finish and higher accuracy workpieces such as bearing rings, piston rings etc. Accordingly, this machine is suitable for grinding in automobile, tractor and bearing industry.

Item	M7450	M7480	M74100
Table diameter	Φ500mm	Φ800mm	Φ100mm
Table speed	5-20rpm	5-20rpm	5-20rpm
Max. Swing dia. of workpiece	Φ580mm	Φ850mm	Φ1080mm
Table movement		440mm	520mm
Total machine power	27kW	37kW	53kW
Max. Loading of table	200kg	700kg	1000kg
Grinding wheel size(ODxIDxH)	350x280x125mm	450x380x150mm	560x460x150mm
Spindle speed of grinding head	980rpm	980rpm	740rpm
Grinding head motor	22kW	30kW	45kW
Max. Grinding size(DxH)	Φ500x300mm	Φ800x320mm	Φ1000x320mm
Roughness of machining surface	Ra0.8um	Ra0.8um	Ra0.8um

Standard accessories:
Coolant tank;
Coolant pump;
Cable;
Wrench;
Machine wedge;
FAQ
1. MOQ
1 set
2. DELIVERY TIME
It depends on the machine and model you choose. Mostly 2 months - 4months. All machines are 100% new and not used.
3. PAYMENT TERM
T/T 30% down payment when order, 70% balance payment before shipment.
4. WARRANTY PERIOD
13 months from the date of B/L, during the warranty period, daily damage parts will be supplied freely, the after sale service will be done by dealers . After warranty period, the spare parts will be supplied at factory price.

---
