CE Certificated 2200 Lbs 1 Tons Hydraulic Lifting Winch Capstan Winch for Crane

Product Description

CE certificated 2200 lbs 1 tons hydraulic lifting winch capstan winch for crane Product Description

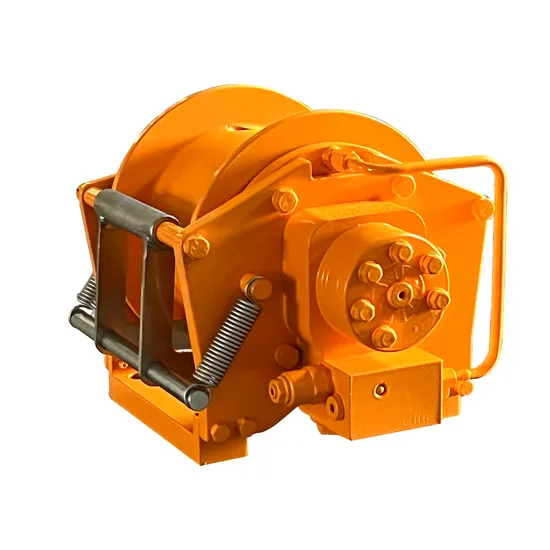

YT10 Hydraulic winch
The YT10 is a versatile hydraulic lifting winch that revolutionizes efficiency and performance with its condensed size, high transmission efficiency.
The YT10 consists of hydraulic motor, planetary gear reducer, brake, drum, wire rope tensioner, etc.
Optional parts: wire rope / hook etc.

Product structural drawing
Performance

Rated line pull	KN/Kgs / lbs	10/1000/2200
Line speed	m/min	39
Response pressure of brake	MPa / Bar	2.5 / 25
Oil pressure	MPa / Bar	16 / 160
Oil flow	L/min	42
Drum diameter x Bottom diameter x Length(internal)	mm	245*160*149
Drum capacity	m	35
Suggested high-intensity wire rope diameter	mm	Φ10
Net weight	Kg	45

Features

1. Full-float typed planetary gear reducer makes the operation more stable, the structure more reasonable.

2. Adopt multidisc-typed friction normally-closed brake makes the brake torque larger, safer and more reliable.

3. The product is featured by its small size, compact construction and high transmission efficiency.

4. Adopt high efficiently hydraulic motor with long use life.

5. The installation bracket can be manufactured according to the customer's requirement.

6. According to the requirement of customers, manufacture the balance valve and shuffle valve special for this winch.

Application
We can customize various spec as your request.
Ideal for ues in a variety of engineering requipment and ship board equipment, such as crane, drilling rig, tow truck, trailer, tractor, Bulldozer, Crawler truck, and more.
Packaging & Shipping
Packing Details:
Standard wooden case or carton box Safety for long-distance transportation All of the productions will be inspected carefully before delivery Delivery Details: Conventional product in stock: send in 3~7 days after payment. Customized product: send in 7~20 days. Door to door / air / sea transportation are all available.
Company Profile
Jiangyin Zhongxin Engineering Equipment Co., Ltd. is a specialized company which undertakes the research, development, production, marketing and service of hydraulic winch and hydraulic lifting winch required by engineering equipment and ship board equipment. It implements strictly ISO90001 and Regulations of Lloyd Classification Society. This company has a powerful team of research and development technical engineers, technicians with excellent skills, inspection quality control personnel with high quality as well as marketing personnel with credit.
This company makes efforts to exploit international market and introduce foreign investment and advanced technology. The products of this company have gained high reputation among foreign customers.
All the employees of this company serve the domestic and foreign customers with the idea of "Credit, quality, technology and management". The hydraulic winch and hydraulic lifting mechanism of this company have formed complete series which can be selected by customers. And we can also improve, research and develop the product according to the technical requirements raised by customers.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory, established in 1998.
Q: What is your terms of payment?
A: T/T 30% in advance, 70% see the B/L copy.
100% Irrevocable LC
Q: What is your terms of delivery?
A: FOB, CFR ,CIF, DDU or as your requirement
Q:Do you supply customized service?
A: Sure! We are manufacturer, and we have our own engineer group. They can work out customized design according to your special requirement.
Q: How about your delivery time?
A: Generally it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends on your purchase quantity.
Q: How about package?
A: Wooden box conforming to export standards.

Q:What information should I provide to you before you could recommend a suitable winch and quote for me?
A: 1. Intended application of the winch (including working condition)
2. Line pull (KN / kgs / lbs)
3. Line speed (m/min)
4. Drum capacity/rope length (m)
5. Rope diameter(if have)
6. Oil pressure and oil flow (if have)
7. Other special requirements
We will always be your service, welcome for your enquiry!

---
