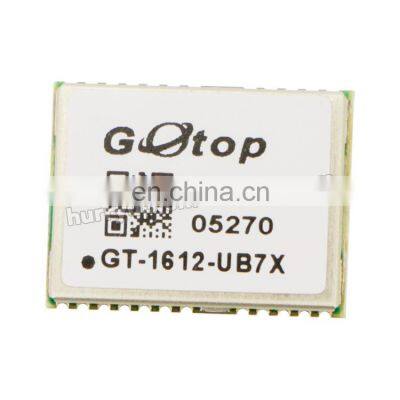

Low Power G7020 Chip Set GT-1612-UB7X GPS Module

Product Description

Product Description
DescriptionGeneral Description• The Gotop GT-1612-UB7X is a complete GPS engine module that features super sensitivity, ultra low power and small form factor. • The GPS signal is applied to the antenna input of module, and a complete serial data message with position, velocity and time information is presented at the serial interface with NMEA protocol or custom protocol.Its –165dBm tracking sensitivity extends positioning coverage into place like urban canyons and dense foliage environment where the GPS was not possible before. • The small form factor and low power consumption make the module easy to integrate into portable device like PNDs, mobile phones, cameras and vehicle navigation systems.Applications• LBS (Location Based Service)• PND (Portable Navigation Device)• Vehicle navigation system• Mobile phoneFeatures• Build on high performance, low-power ublox G7020 chip set• Ultra high Track sensitivity: -165dBm• Built in high gain LNA• Perfect compatibility ublox NEO-7Q/M• Extremely fast TTFF at low signal level• Low power consumption: Max 35mA@3.3V• NMEA-0183 compliant protocol or custom protocol• Operating voltage: 2.8V to 3.6V• Operating temperature range:-40to85℃• SMD type with stamp holes• Small form factor: 16x12.2x2.6mm• RoHS compliant (Lead-free)Why Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC

---
