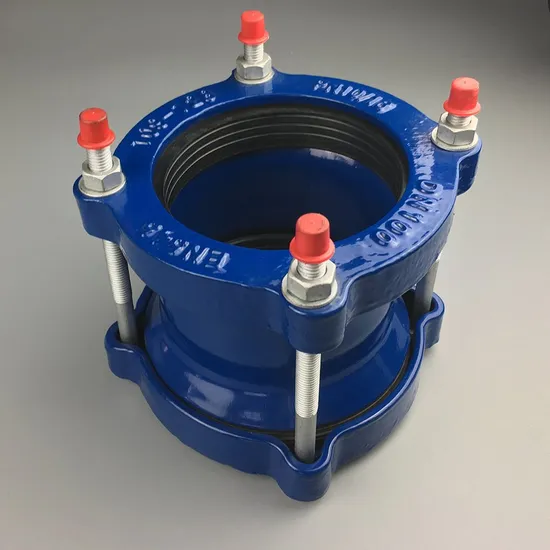

Viking Johnson Flexible Coupling

Product Description

Pipe Coupling / Universal Joint Coupling / Universal Coupling
1. Application :
* used for pipe connection .
* suit for Ductile Iron Pipe, Cast Iron Pipe, Steel, AC, Plastic pipe
* Working pressure: PN10 / PN16
* Suit for Water, Neutral Liquids and Sewage
2. Features :
* wide range of tolerance
* corrosion resistance
* allow angular deflection of +/- 4°
3. DIMENSION SHEET

S/N	Size	O.D Range
	mm	mm
1	DN40	48-60
2	DN50	59-73
3	DN65	72-85
4	DN80	88-103
5	DN100	96-116
6		108-120
7		109-128
8	DN125	132-146
9		138-153
10	DN150	158-172
11		159-182
12	DN175	192-210
13	DN200	198-225
14		218-235
15	DN250	242-262
16		250-267
17		250-274
18		272-289
19	DN300	315-332
20		322-339
21	DN350	340-360
22		351-378
23		374-391
24	DN400	390-410
25		398-430
26		417-437
27		425-442
28	DN450	450-463
29		455-475
30		476-500
31	DN500	500-508
32		500-533
33		526-546
34	DN600	600-630
35		608-636
36		630-650
37	DN700	710-739
38	DN800	816-842

Note: we accept your specific dimensions which are not included in the above lists .
