| US$23,357.66-27,737.23 | 1 set (MOQ) |

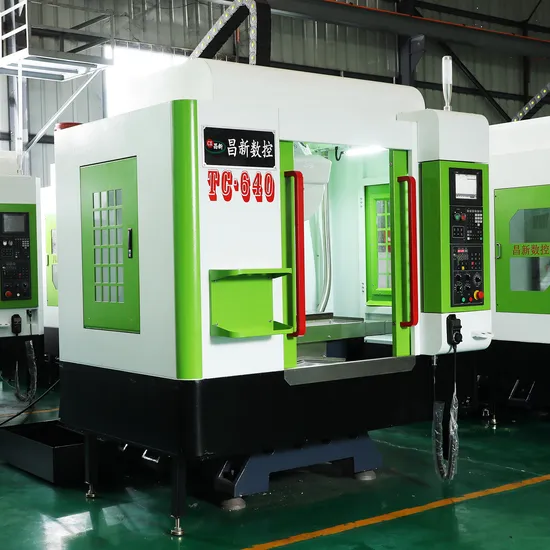

| 3 axis cnc drilling tapping machine center TC-640 | |
| Auto Lubrication System: | auto evenly distributing lubrication |
| Tool Magazine: | Taiwan ATC Clip Arm type tool magazine (21 tools) |
| Bearing: | Japan NSK or German FAG optional |
| X/Y/Z-Axis Travel | 600mm/400mm/300mm |
| Distance from Spindle Nose to Table | 135mm-435mm |
| Distance from Spindle Center to Column Guide Rail | 450mm |
| Working Table Size | 700*420mm |
| Table Max Load | 300kg |
| Maximum Tool Diameter | Φ80mm |
| Maximum Tool Weight | 7kg |
| Tool Changing Time (Tool to Tool) | 2.3seconds |
| T Slot | 3pcs,size:18T,Interval:100mm |
| Main Spindle | Taiwan |
| Spindle Speed | 20000rpm |
| Spindle Motor Power | 5.5kw |
| X/Y/Z-Axis Motor Power | 1.5kw/1.5kw/3.0kw |
| Rapid Traverse(X/Y/Z) | 48000/48000mm/48000mm/min |
| Cutting Speed | 1-12000mm/min |
| Spindle Taper Diameter | BT30 |
| Positioning Accuracy ( Japan JIS standard) | ±0.005mm/300mm |
| Repeat Positioning Accuracy ( Japan JIS standard) | ±0.003mm/300mm |
| Total Electricity Demand | 15kw |
| Machine Size(L*W*H) | 2100×2000×2600mm |
| Machine Weight | 3.5ton |
| Linear guide rail and ball screw | Taiwan Hiwin |
| Support Way | X/Y/Z Axis precision slide (Taiwan HIWIN/ PMI) 30mm wide P grade |
| Ball screw | X ,Y:Φ28,Z: Φ32 P16 C3grade ( Taiwan HIWIN/PMI ) |
| Coupling | German BK3 SW*J |
| Main electrical accessories | German Schneider, Merlin Gerin |
| Circuit breakers and relays | German Schneider, Merlin Gerin |
| Working LED lamp | Taiwan |
| Hand control electronic hand wheel | Taiwan |
| Accessories | Tool box (1 set) Tool Holder(2 pcs) vise and Lock knife seat (1 set) Machine operating manual Operation and programming manual Servo Motor and Controller Manual High pressure spray gun(1 pcs) Hand Wheel |
