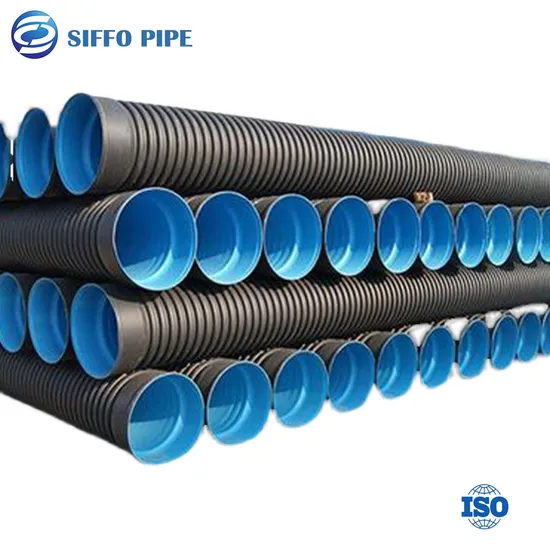

HDPE Double Wall Corrugated Plastic Pipe Dwc for Water Drainage System Pipe Sewerage

Product Description

HDPE (High Density Polyethylene) Double Wall Corrugated Pipes are for gravity and low pressure sewerage and drainage, such as waste water, sanitary sewer and storm sewerage for municipal or industrial use. The pipes provide important benefits and distinct advantages for sewer and drainage applications.
Double Wall Corrugated Pipe Features:
1.Intensity and Stiffness (ability of enduring geographical conditions load);
2.Hydraulic features (ability of transporting liquid);
3.Sealability (no giveaway, prevent polluting environment);
4.Long Lifespan (corrosion resistant, resistance to abrasion);
5.Easily to install;
6.Comprehensive economical features
First: Intensity and stiffness. Because plastics embedded pipe is flexible pipe and it endures the press with the soil around in correct design and construct that plastics embedded pipe doesn 't need the same intensity and stiffness as rigid concrete drain pipe.
Next: In hydraulic features, plastics pipe's resistance of fluid is less than concrete pipe because of it's slippy inner surface. It's proved by practice that smaller diameter plastics pipe can attain required the same flow rate than concrete pipe at the same slope. Plastics pipe can decrease the slope rate at the same diameter (decrease construction workload ).
Third: In sealability, Plastics pipes' connection is credible. (flexible sealing ring bell and socket link).
Four: Plastics pipe has many advantages in useful lifespan and corrosion resistant. Sewage and rainwater transported by embedded pipe is always aggressive, acidity or causticity. Sewage has powerful corrosiveness for example industrial water. Plastics embedded pipe has better inoxidizability than metallic conduit and concrete pipe. Plastics pipe's abrasion resistance is better.
Five: Prominent advantage in installation: light weight, longer length (less connect), low require for pipe ditch and foundation, easy connecting and quickly constructing. Plastics pipe's virtue is prominent in city's crowded area and bad geological area (for example high ground water level and flaccid foundation).
Last: plastic embedded pipe's virtue is being discovered in comprehensive economic level. The price of plastic embedded pipe is higher than concrete pipe. But it is approved by installation practices in domestic and international market; in all projects?cost of plastics embedded pipe was lower than concrete pipe if the design and construction is correct. The cost of double wall-corrugated pipe is as similar as concrete gripping pipe. Its price decreases 30%-40% than faucet concrete pipe. Double wall-corrugated pipe can reduce the construction period. Its economic feature is apparent.
Major technical indicators of HDPE Double Wall Corrugated pipe
Density: 941kg/m2 ~965 kg/m2 ;
Refracton coefficient: 1.54nd;
Water absorption<0.01%;
Tensile strength:20-35Mpa;
Elastic modulus:800MPa; Stretch yield strength: 20MPa;
The ring strength of pipe should equal or over 4KN/ m2;
HDPE Double Wall Corrugated Pipe Application:
1.Rainfall and sewage drainage in municipal engineering
2.Industrial waste water and plot sewage drainage
3.Brine well transporting bittern, fishery transporting water
4.Mine ventilation and drainage project
5.Farming irrigation and drainage
6.Wall pipe of excavate project (double wall corrugated pipe with holes
7.Water conservancy project
8.Protection pipe of low voltage cable and communication cable
9.Expressway embedded pipe
Specification

Nominal Inside Dia.(mm)	Average Inside Dia.min(mm)	Outside Thickness min(mm)	Inside Thickness min(mm)	Connection Lenght(mm)
200	195	1.1	1.5	54
300	294	1.7	2	64
400	392	2.3	2.5	74
500	490	3	3	85
600	588	3.5	3.5	96
800	785	4.5	4.5	118

Shandong Sifu International Trade Co.,Ltd.is a professional supplier of HDPE & PVC pipes, is the first national high-tech enterprise since lanshan District. The factory is located in shandong Province, and we have 5 years exporting experience, our factory covers more than 25,000 square meters. And we have 20 engineers and about more than 100 workers.
The company has first-class production equipment and advanced detection equipment , has accumulated a large number of professional and technical elites, specializing in R & D, production and sales of plastic products, metal products and rubber products. The annual production capacity of various types of products for company reaches 100000 tons.
Certificates
FAQ
1.Q: What is the Raw material ?
A: 100% virgin raw material.
2.Q: What is your MOQ?
A: As customers' requests.
3.Q: why choose us?
A: We are a professional manufacturer with competitive price, good quality and fast delivery time.
4.Q: How to buy the product?
A: Send email to me, we will reply to you within one day.
5.Q: Can you make special Design and logo on product?
A: Yes, very easy.
6. Q: What is the shipping port?
A: Shanghai or Qingdao port.

---
