US$2,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Cup Mouth Diameter
Cup Type
Certification
LFGB, FDA, CE / EU, CIQ, EEC
Technics
Self-Adhesive Label
Name
Industrial Cooking Kettle Soup Kettle Meat Kettle
Double Jacketed Kettle
Heating and Mixing
Jacketed Kettle
50L to 1000L
Jam Cooking Kettle
Kettle with Scrapper Agitator
Industry Jacket Kettle
Cooking , Pasteurizing and Mixing Liquid
Material of Kettle
Stainless Steel 304/316
Heating Source
Electric Heating Kettle, Steam Heating Kett
Mixer
Scrapper Mixer, Customized
Kettle Heating Source
by Steam/Electricity/Gas
Kettle Type
Tilting, Vertical ,Fixed
Motor Brand
Siemens /ABB /China Brand
Transport Package
Standard Export Wooden Box
Production Capacity
2000set /Year
Product Description

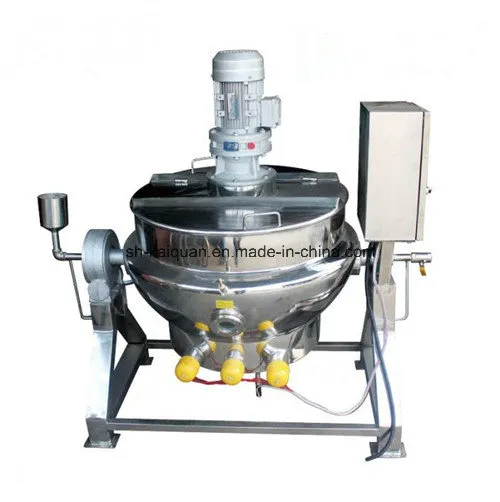

Industrial Cooking Kettle Soup Kettle Meat Kettle Syrup Kettle
(steam/electrical heating)
Industrial Cooking Kettle Soup Kettle Meat Kettle Syrup Kettle
Material: SS304/316
Electric Heating Jacketed kettles
Stainless steel double-layered boiler/kettle ,used for heating, pasteurizing, cooking, mixing juice, sauce, fruit jam and processing meat, food, Candy, pharmacy, dairy , liquor, cake, drink, candied fruit, etc
Material: SS304
Heating by Electricity
* Type: with Jacketed wall
* Internal shell thickness: 3 or 4 mm, SS304
* Jacket thickness: 3 or 4mm, SS304
Product Name: | Stainless steel jacket kettle |
| Description: | Designed according to 3A standard, widely used for transfer viscous media in the food-processing, cosemtics and pharmaceutical industries |
| Construction: | vertical jacketed kettle,tilting jacketed kettle |
| Heating mothed | By electricity (oils or water), by steam, by gas |
| Material: | SS304/SS316L/1.4301/1.4404 |
| Capacity: | 50L-1000L |
| Agitator Type: | With PTFE scraper |
| Mechanical seal: | SIC/SiC/EPDM(Standard) |
| Motor power: | 0.55kw, 1.1kw, 1.5kw, 2.2kw, 3kw, 7.5KW |
| Sealing option: | Sanitary single mechanical seal/Double mechanical seal with cooling system |
| Voltage: | 220V, 380V,415V |
| Motor: | ABB, LOCAL,50hz/ 60hz |
| Surface treatment: | Inner polished and outside polished |
| Availably connection: | Clamp, Thread Butt weld, Flange |
| Availably standard: | DIN, SMS, 3A, RJT, ISO/IDF |
| Operated: | Electic |
| Application scope: | Dairy, food, beverage, pharmacy, cosmetic, etc |
| Packaging Details: | Plywood case or customerized. Or as per the request of customers |
| Delivery details: | Usually within 20 days after receiving T/T down payment |
Stainless steel double-layered boiler/kettle ,used for heating, mixing fruit jam and processing meat, food, Candy, pharmacy, dairy , liquor, cake, drink, candied fruit, etc
JACKET Kettle PART
Capacity: 300L TO 1000L
Material: SS304
Heating by Electric (380V, 50HZ)
* Type: with Jacketed wall
* Internal shell thickness: 3 mm
* Jacket thickness: 3 mm
stainless steel electric/steam/gas heating jacket kettle
|
KQ100 |
KQ150 |
KQ200 |
KQ300 |
KQ400 |
YT500 |
Capacity L |
|
100 |
150 |
200 |
300 |
400 |
500 |
Jacketed pressure
Mpa |
< 0.2 |
Evaporation capacity
kg/h |
|
40 |
50 |
65 |
75 |
100 |
150 |
Heat area
m 2 |
|
0.45 |
0.76 |
1.0 |
1.15 |
1.44 |
1.90 |
Energy consumption
kg/h |
|
44 |
55 |
72 |
90 |
110 |
165 |
N.W.
kg |
|
190 |
210 |
230 |
320 |
360 |
485 |
LxWxH
mm |
|
800X650X830 |
1350X650X1100 |
1400X700X1100 |
1450X800X1110 |
1500X850X1140 |
1600X900X1150 |
Industrial Cooking Kettle Soup Kettle Meat Kettle Syrup Kettle
>>
