Product Details
Product Description
Product Description
Product Introduction

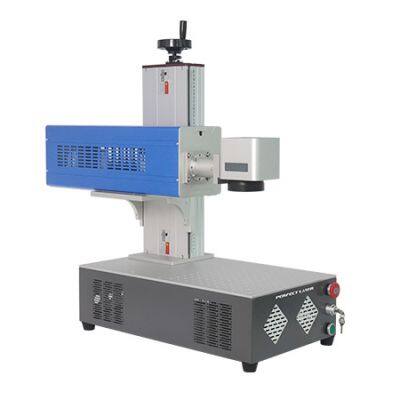

Perfect laser's CO2 desktop laser marking machine, mainly for non-metal marking and marking of some metal materials.
It uses the RF metal laser tube as the laser source, the equipment has a long service life. Marking is not limited by the site, and with high.operation efficiency.
The overall structure of the product is more lightweight, portable, easy to operate and maintain. The CO2 desktop laser marking machine can be matched with different power lasers and field mirrors to meet the marking needs of different formats and marking depths.
Product Features
1. The CO2 laser marking machine uses an RF metal laser tube as the laser source, with a lifespan of 30000 to 40000 hours without maintenance;
2. The CO2 laser marking machine has good beam quality, more stable and precise, smoothly marking;
3. The CO2 laser marking machine can complete image scanning and exquisite marking in a very short time using high-speed scanning lenses.
4. Automatic fixtures and loading and unloading production lines can be configured according to user requirements. Can automatically complete date and serial number, and can mark strip type codes;
5. The co2 laser marker adopts mechanical moving parts with simple structure, wear resistance, and corrosion resistance, making the system have good stability and high motion accuracy;
6. The co2 laser marker can operate at full load for 24 hours, meeting the requirements of the production party for large-scale production;
7. Environmentally friendly and green, it is a labeling solution for environmental protection;
8. The software have merits of easy operation, friendly interface, workers can quickly get started;
9. Desktop CO2 is more lightweight and portable, simple and easy to operate.
Application
Applicable Industry:
The CO2 laser marking machines are widely used for marking and cutting graphics and text in the fields of clothing, leather, food and beverage packaging, electronic components, handicrafts, glass and stone processing.
Applicable Materials:
The CO2 laser marking machine is suitable for marking most non-metal materials, such as paper packaging, plastic products, label paper, leather fabric, glass ceramics, resin plastic, bamboo and wood products, PCB board, etc. It can also cut thin fabrics, cardboard and acrylic.
Technical Data
Model
| 30W Wood Leather Nonmetallic Material Mini Desktop
Co2 Laser Marking Machine
|
Control system
| JCZ brand EZCAD
|
Marking depth
| 0.01-0.3mm (adjustable according to material)
|
Line width:
| 0.015mm
|
Marking speed
| 7000mm/s
|
Marking format
| 110*110mm
|
Repetition accuracy
| ≤0.01mm
|
Laser wavelength
| 1064nm
|
Marking function
| Flat, cylindrical objects, fillable marks
|
Tag content
| English, numbers, punctuation, Chinese, arbitrary graphics, bar codes, etc
|
Laser power
| 20W/30W(Optional)
|
Electricity demand
| AC(110-220V)±10%,50/60Hz
|
Working environment
| Temperature 15 ~ 35℃, humidity 45 ~ 75%, no dust, no oil smoke, no corrosive gas
|
Software function
| 1) Compatible software: CorelDRAW, AutoCAD, Photoshop, etc
2) Supported formats: PLT, DXF, BMP, JPGE, etc
3) Own word library: SHX, TTF
Supported functions: text, graphics, pictures, automatic coding, printing serial number, batch number, date, bar code, two-dimensional code, automatic jump number, etc.
|
>>
