2000kg Permanent Magnetic Lifter Manufacturer

Product Description

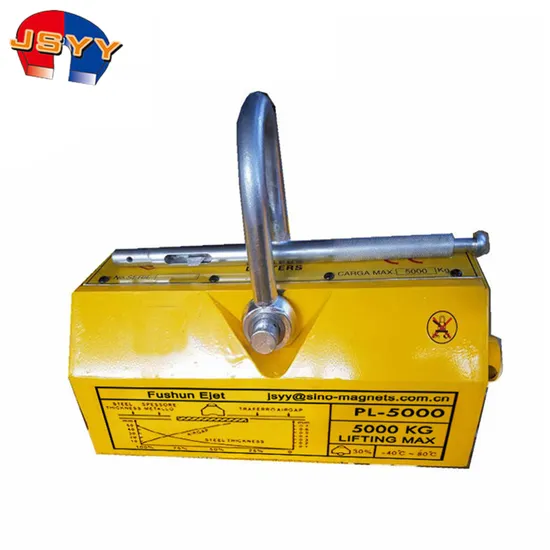

The Application Of 200kg Lifting Magnet For Lifting Steel Scrap
The manual permanent magnetic chuck is suitable for lifting and transporting flat machine parts and steel products, so it is applicable in mold and machine processing industries. For example, it is commonly seen in machining cnters,ship building plants,machine manufacturing factiries,etc.

Types	Rated Lifting Capacity	Length	Width	High	Weight
	kg	mm	mm	mm	kg
PL-300	300	205	90	90	11
PL-600	600	276	115	106	19
PL-1000	1000	310	150	135	43
PL-1500	1500	380	172	152	68
PL-2000	2000	425	180	160	95
PL-5000	5000	530	260	255	145
CUSTOM	50~8600	custom	-	-	-

Structure
The TX series manual permanent magnetic chuck adopts high performance permanent magnetic material (NdFeB magnet) as its core component, thus realizin smaller size,higher lifting capacity and longer life span.
For safety considerations,this permanent magnetic lifting device has a safety factor of 3.5,indicating that its lifting capacity is 1/3.5 of the maximum holding power.
With "U" grooves on the under surface, the manual lifting magnet is capable of lifting both round steels and steel plats. So it is also referred to as a dual-purpose lifting chuck.
Since a permanent magnet is used, so electricity is required. As a result, all risks associated with power failure and wiring breakage are eliminated.
Our permanent magnetic chuck has an optimized magnetic circuit, thus reducing the remanence to almost zero.
Thank to the paint spraying treatment, our steel hoisting magnet has an aesthetic appearance that could bring extra joy to operators.
Features
1.Supply to USA,Europe,and Austrilia
2.Matrial:Rare earth magnet, carbon steel
3.Professiona permanent magnetic lifter supplier
4.Safety rate: 2.5, 3 & 3.5 times

Packing & Shipping
1. Packing: Export packing
2. Shipping time: 30 days after receiving the deposit
Pls kindly feel free to contact us if you have any inquiries.


OTHER PRODUCTS


17 YEARS FOCUS ON MAGNETIC SEPARATOR
Ejet had been in this field for 17 years since 2006. We are the leading manufacturer in Asia. with rich experience. We had very good cooperation with famous universities, such as Shanghai Jiaotong University, Shanghai second technology University, Northeast University and scientific establishments.
20% ENGINEERS IN EJET OBTAIN MORE AND MORE NATIONAL PATENT
Engineers are accounted 20% of the total people in Ejet, the stable team keeps developing and perfect quality.
30 YEARS EXPERIENCE OF IN MACHINE DESIGNING
Some engineers had more than 30 years experience with magnetic separators and eddy current separators, we were the leading engineer for eddy current separators in China. Products are widely used in the recycling and mining industries.
3000 SETS PRODUCTS HAD BEEN MANUFACTURED
The products are widely used in mining, plastic recycling, metal recycling and E-waste recycling. And had been exported to more than 40 countries.
24 HOURS AFTER-SALES SERVICE
The contract is not the beginning of the cooperation, Ejet worries about what customers worry about. Customer service is 24 hours online. And we had a spare parts store for each customer.



More Information About Ejet Magnet
This was in 2004, when our founder, Mr. Wang, first used magnetism knowledge to make research and designed the first set eccentric pole eddy current separator in China. Thus we are fully aware of this responsibility in sorting resources field for nonferrous metal.
In the year 2006, with 25 years of magnetic experience, Ejet Magnet was Established. Keeping improvement for all kinds of magnetic separators, to provide high-quality and high-performance products is our own responsibility, moreover, offering the best solution and the most effective service is one of the higher-standard targets we are pursuing. Ejet has a strict quality control system for raw materials inspection, producing quality inspection, and machine testing.
With 4 members team, in the beginning, Ejet has grown through continuous product innovation and worldwide expansion to over 5000 square feet of manufacturing space and more than 100 employees.
The main products eddy current separators, magnetic separators, sensor sorters and AI technology machines for recycling industries had been exported to more than 50 countries.
Materials testing and machines OEM could be available for better solutions for metal recycling, plastic, glass cullet, construction waste, incineration bottom ash, Aluminum, and E-waste recycling. Also for food, chemical, and lithium battery industries.
Ejet after-sales service promises that within 15 minutes we will make a response to the customer. On the condition that some problems cannot be solved by calls or call videos, engineers are available to serve overseas.
Each Perfect Separation is EJET's commitment to you! We constantly pay attention to your separation result.
Ejet had been focused on magnetic separator design, and manufacturing for more than 17 years with rich experience. Ejet has been dealing with the construction of machines for bulk material handling.
Ejet® is a One-stop Source for Recycling Equipment used in Material Recovery Facilities, conveyors, Screening, and Magnetic Technology for all kinds of industry fields: Automotive Shredder Residue (ASR). Municipal Solid Waste. Incineration Bottom Ash. Mining Magnet.
Q&A 1. Q: What kind of metal is the eddy current separator applied to?
A: Eddy Current Separator suitable for aluminum, copper, and brass.etc non-ferrous scraps separation from non-metal materials of size >3mm.

2. Q: Which type should I use for my recycling plant?
A: In order to recommend the most suitable model, please let us know the material`s situation. Including the composition, size, handling capacity and expected separation result.

3. Q. What is the MOQ of your machine?
A: Our MOQ is 1 set

4. Q: What are the pros and cons of a concentric pole rotor compared with and eccentric rotor design?
A: The eccentric type is much more suitable for the complicated material situation, The eccentric rotor design reduces long-term wear due to heated ferrous build up, and can effectively avoid the device damage caused by impurity ferrous metal.
Exclusive the ferrous influence, the concentric type has a little bit better separation effect but must make sure no ferrous exist.

5. Q. How long is the machine warranty period?
A: the product warranty period is 12 months
For details, or for longer the machine Warranty Period.

---
