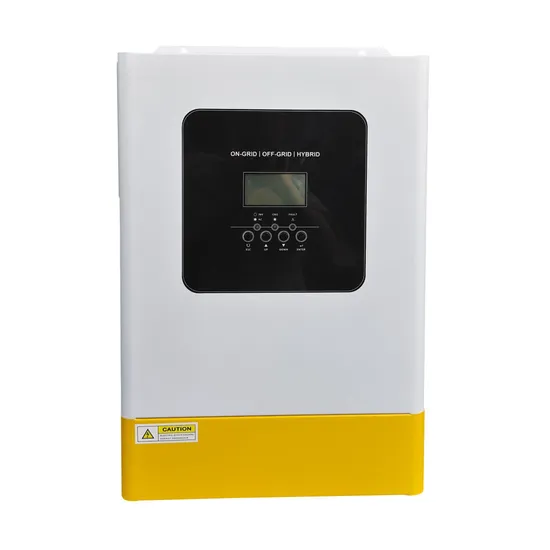

Premium Grid-Tied Solar Hybrid Inverter 6200W 48V for Solar Energy Solutions

Product Description

Product DescriptionGM Series ( On & Off Grid Hybrid )
5.5 / 6.2KW 220V / 230Vac Output ( PV 60-500Vdc )Features
- Self-consumption and feed-in to the grid
- Programmable multiple operation modes: Grid-Tie, off-grid and grid-tie with backup
- Backflow prevention via external CT sensor and grid connection function
- Parallel operation up to 12 untis in 1 phase or 3 phase
- Direct plug WIFI dongle supported
- Output power factor 1.0
- High PV input voltage range 500Vdc max
- Built-in MPPT solar controller 100A / 120A
- WIFI remote monitoring optiona
- Detachable dust cover for harsh environment
- User-adjustable charging current and voltage
- Programmable supply priority for PV, battery or grid
- Support multiple output priority: SBU / SUB / SUF / ZEC
- EQ function to optimize battery performance and extend lifecycle
Product Parameters

Model	GM5500-48PL	GM6200-48PL
Phase	1 Phase in / 1 Phase Out	1 Phase in / 1 Phase Out
Max PV Input Power	5500W	6500W
Parallel Function	YES, 12 Units
Rated Output Power	5500VA / 5500W	6200VA / 6200W
Lithium Battery Activation	YES (By PV or Utility)
Lithium Battery Communication	YES
Grid-Tie Operation
PV Input (DC)
Nominal DC Voltage / Max DC Voltage	360VDC / 500VDC
Start-up Voltage / Initial Feeding Voltage	150VDC / 120VDC
MPPT Voltage Range	60VDC ~ 500VDC
Number of MPPT Trackers/ Max Input Current	1 / 18A	1 / 27A
Grid Output (AC)
Nominal Voltage	220 / 230 / 240VAC
Output Voltage Range	170~280VAC or 90~280VAC
Nominal Output Current	22A	27A
Power Factor	0.6~1 (Inductive or Capacitive)
Max Coversion Erriciency (DC/AC)	94%
Off-Grid Operation
AC Input
AC Start-up Voltage / Auto Restart Voltage	100VAC / 90VAC
Acceptable Input Voltage Range	170-280VAC or 90-280VAC
Max AC Input Current	40A
PV Input (DC)
Max DC Voltage	500VDC
MPPT Voltage Range	60VDC ~ 500VDC
Number of MPPT Trackers / Max Input Current	1 / 18A	1 / 27A
Battery Mode Output (AC)
Nominal Output Voltage	220/230/240VAC
Output Waveform	Pure Sine Wave
Efficiency (DC to AC)	94%
Hybrid Operation
PV Input (DC)
Nominal DC Voltage / Max DC Voltage	360VDC / 500VDC
Start-up Voltage / Initial Feeding Voltage	150VDC / 120VDC
MPPT Voltage Range	60VDC ~ 500VDC
Number of MPPT Trackers / Max Input Current	1 / 18A	1 / 27A
Grid Output (AC)
Nominal Output Voltage	220/230/240VAC
Output Voltage Range	170-280VAC or 90-280VAC
Nominal Output Current	22A	27A
AC Input
AC Start-up Voltage / Auto Restart Voltage	100VAC-90VAC
Acceptable Input Voltage Range	170-280VAC or 90-280VAC
Max AC Input Current	40A
Battery Mode Output (AC)
Nominal Output Voltage	48VDC
Efficiency (DC to AC)	94%
Battery & Charger
Nominal DC Voltage	48VDC
Max Solar Charging Current	100A	120A
Max AC Charging Current	80A
Max Charging Current	100A	120A
Physical
Dimensions	448*315*122 mm	450*300*130 mm
Net Weight	11 KGS	12 KGS
Communication Interface	RS232 / RS485 / External CT Port
Environment
Operating Temperature Range	-10 ~ 50ºC
Humidity	5% to 95% Relative Humidity (Non-Condensing)

Packaging & ShippingTo better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company ProfileWelcome to SunriseTek, where innovation meets sustainability in the field of solar photovoltaics.
SunriseTek is a leading company specializing in a comprehensive range of products centered around solar energy applications.
Our offerings include hybrid and off-grid solar inverters, solar controllers, lithium batteries, solar lighting, and solar panels.
Good FeedbackOur Advantages1. Reliability and Quality: We understand your need for dependable and durable solutions, which is why our products undergo rigorous quality control and testing to ensure stability and reliability. Our focus on innovation and optimization ensures that we provide top-notch solutions to meet your quality expectations.
2. Sustainability: Like you, we believe solar technology is pivotal for achieving sustainability. Our products and services are designed to assist you in your transition to sustainable energy, reducing reliance on conventional sources and minimizing environmental impact.
3. Professional Support and Collaboration: With years of experience in the solar photovoltaic industry, our team is well-versed in providing professional advice and tailored support, fostering lasting partnerships for mutual success.
FAQ1. How can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;2.What can you buy from us?Solar Panel,Solar inverter,battery,solar controller,Solar Lights3. Why should you buy from us not from other suppliers?We specialize in solar energy solutions with top-tier inverters, controllers, and panels. Our expertise extends to cutting-edge lighting solutions: street lights, industrial lights, and floodlights. Customers trust our high-quality products. innovation4. What services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash

---
