Basic Info.
Material Shape
Round Wire
Wire Core Material
Bare Copper Wire
Certification
CE, ISO, RoHS, CCC, VDE
Conductor Diamater
0.560±0.01mm
Insulation Diameter
1.30±0.05mm
Transport Package
Box (305m)
Specification
305M/500M/1000M
Production Capacity
800000 Boxes/Year
Product Description
CAT 6A UTP/FTP/SFTP Cable
Application
100 BASE-Tc, 100 BASE-TX, 1000 BASE-T, 1000 BASE-TX, 155 Mbps ATM, 100VG-AnyLAN, 622 Mbps ATM, 10GB ETHERNET
Mechanical Characteristics
| Operating Temperature | -20ºC~75ºC |
| Maximum Pulling Force | 110N |
| Minimum Bending Radius | 4 X O.D. |
| Flame Test | PVC: CMX/CM/CMG/CMR
LSZH: CPR-B2ca/Dca/Eca/Fca |
Product Specification
| Product | CAT 6A 4PAIR U/FTP CABLE |
Standards
| UL Subject 444, ANSI/TIA 568C.2, ANSI/TIA 568.2-D, ISO / IEC 11801, IEC 61156-5, YD/T1019-2013 |

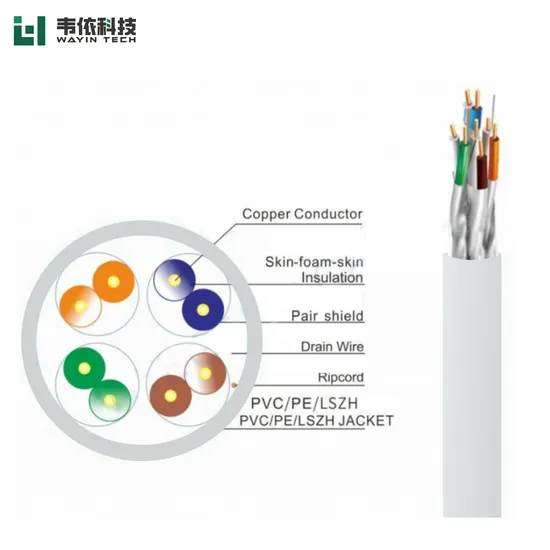

| Product Structure |
| Conductor | Material | Bare Copper
Bare Copper Annealed Bare Copper | |
| Diameter (mm) | 0.560±0.01 |
| Insulation | Material | PE(Skin-Foam-Skin) |
| Diameter (mm) | 1.30±0.05 |
| Color code | 1.White-Blue/Blue | 2.White-Orange/Orange |
| 3.White-Green/Green | 4.White-Brown/Brown |
| Separator | No |
| Ripcord | Yes |
| Shield | Aluminum Foil |
| Drain wire | TC 0.4mm |
| Sheath | Material | PVC/LSZH |
| Thickness (mm) | 0.55±0.05 | Marking | Letter height (mm) | 3.0±0.5 |
| Diameter (mm) | 7.3±0.3 | Color | Black/White |
| Color | Optional | Print error & Space | ≤±0.5%,1m |
| Electrical Parameters |
| Conductor Resistance (20"C) | ≤7.5 Ω/ 100m |
| Electrical Resistance Unbalance ( 20'C) | ≤2.5 % |
| Insulation Resistance | >5000 MQ km |
| Technical Characteristics |
| F | Attenuation | NEXT | PSNEXT | Prop. Delay | ACR-F | PSACR-F | Return Loss |
| (MHz) | (dB/100m) | (dB) | (dB) | (ns/100m) | (dB/100m) | (dB/100m) | (dB) |
| 1 | 2,0 | 74,3 | 72,3 | 570 | 67,8 | 64,8 | 20,0 |
| 4 | 3,8 | 65,3 | 63,3 | 552 | 55,8 | 52,8 | 23,0 |
| 8 | 5,3 | 60,8 | 58,8 | 546,7 | 49,7 | 46,7 | 24,5 |
| 10 | 6,0 | 59,3 | 57,3 | 545,4 | 47,8 | 44,8 | 25,0 |
| 16 | 7,6 | 56,2 | 54,2 | 543 | 43,7 | 40,7 | 25,0 |
| 20 | 8,5 | 54,8 | 52,8 | 542 | 41,8 | 38,8 | 25,0 |
| 25 | 9,5 | 53,3 | 51,3 | 541,2 | 39,8 | 36,8 | 24,3 |
| 31,25 | 10,7 | 51,9 | 49,9 | 540,4 | 37,9 | 34,9 | 23,6 |
| 62,5 | 15,4 | 47,4 | 45,4 | 538,6 | 31,9 | 28,9 | 21,5 |
| 100 | 19,8 | 44,3 | 42,3 | 537,6 | 27,8 | 24,8 | 20,1 |
| 200 | 29,0 | 39,8 | 37,8 | 536,5 | 21,8 | 18,8 | 18,0 |
| 250 | 32,8 | 38,3 | 36,3 | 536,3 | 19,8 | 16,8 | 17,3 |
>>
