US$450,000.00-3,000,000.00
|
1 Set
(MOQ)
|
Basic Info.
Type
Pipe Welding Machine
Voltage
220/380/415/420/440V
Level of Automation
Full-Automatic, Semi-Automatic
Weight
According to Actual Machines
The Width of Steel Strip
According Customer Request
Key Word
Welded Tube Mill Line
Pipe Shape
Round, Squrae, Oval, Recangle, etc
Material Quality
Customer Specified
Width of Steel Strip
Customer Specified
Transport Package
Moulds: Packing in Wooden Case
Specification
customer request
Production Capacity
50sets
Product Description

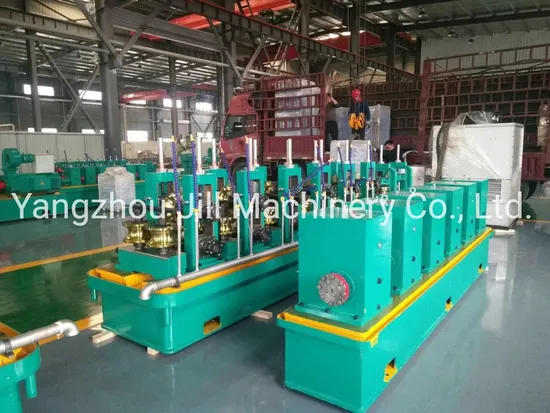

ERW Welding Pipe Mill and Straight Seam Welded Pipe Production Line Tube Making Line
ALL Size Parameter details
| Model | Diameter of welded pipe(mm) | Wall thickness of welded pipe(mm) | Speed of machine(m/min) | Power of main motor(k/w) | High-frequency power(kw) |
| HG16 | 8-25 | 0.25-1.0 | 30-100 | 30 | 60 |
| HG25 | 8-32 | 0.35-1.3 | 30-100 | 45 | 100 |
| HG32 | 13-50.8 | 0.5-2.0 | 30-90 | 110 | 150 |
| HG50 | 20-63.5 | 0.6-2.5 | 30-90 | 160 | 200 |
| HG60 | 25-63.5 | 0.8-3.0 | 20-80 | 185 | 250 |
| HG76 | 25-80 | 1.2-4.0 | 20-70 | 200 | 300 |
| HG90 | 32-90 | 1.5-4.5 | 20-60 | 110*2 | 400 |
| HG115 | 38-115 | 2.0-5.0 | 20-60 | 160*2 | 400 |
| HG165 | 80-165 | 2.0-6.0 | 15-50 | 200*2 | 500 |
| HG219 | 90-219 | 3.0-8.0 | 15-50 | 250*2 | 600 |
| HG273 | 165-355 | 4.0-10.0 | 15-40 | 250*1 /185*2 | 800 |
| HG300 | 165-355 | 4.0-12.0 | 15-30 | 250*2/200*2 | 1200 |
Certification display
Packing &shipping
FAQ
01. Are you manufacturer ?
A: Yes, we are a manufacturer with 30 years experience which is located in Yangzhou city Jiangsu Province Chiina a base production place of this industry.
02. What information do you need before making quotation ?
A: Pipe material, size ,thickness that you want to produce.
03. What shall I do to start a new business in pipe ?
A: We will provide you free consultant of complete suggestions including your factory layout and workshop design ,etc.
04. What's your special between other suppilers ?
A: 1. We have more than 30 years experience in this industry, our products were exported all over the world. 2. We had ISO/CE that you can gain the highest quality and after-sales service from us with the costest price.
>>
