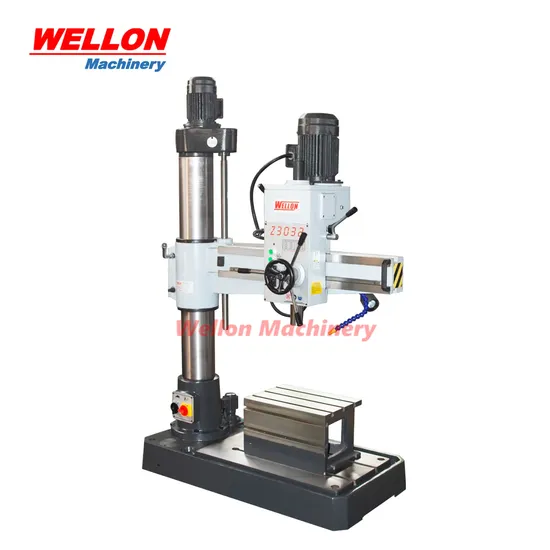

Z3032X10 Small Radial Drilling Machine

US$1,300.00-1,700.00 1 Piece (MOQ)

Basic Info.

Model NO.
Z3032x10
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Drilling Capacity
32
Spindle Travel (mm)
120
Spindle Taper(Mt)
4
Spindl Speeds Range(r.p.m)
108\162\262\398\665\1000
Spindle Speed Steps
6
Spindle Feeding Range(mm/R)
0.10,;0.16.0.32
Spindle Feeding Steps
3
Head Stock Travel(mm)
550/650
Main Motor Power(Kw)
1.5-2.2
Net Weight (Kg)
800/850
Transport Package
Wood Case
Specification
CE ISO9001
Trademark
WELLON
Origin
China
HS Code
8459290000
Production Capacity
300PCS/Month

Product Description

Products Description:
Z3032x10 small radial drilling machine
Mechanical transmission
Mechanical clamping
Mechanical speed change
Automatic rocker arm lifting
Model Z3032x10
Max.drilling dia (mm) 32
Distance from spindle nose to table surface (mm) 220-1000
Distance from spindle axis to column surface (mm) 260-680/780
Spindle travel (mm) 120
Spindle taper(MT) 4
Spindle speeds range(r.p.m) 108\162\262\398\665\1000
Spindle speed steps 6
Spindle feeding range(mm/r) 0.10, 0.16.0.32
Spindle feeding steps 3
Head stock travel (mm) 550/650
Main motor power (kw) 1.5-2.2
Net weight (kg) 800/850
Overall dimensions (mm) 1235×600×1780

Standard accessories:
Box type worktable
Drill chuck
Taper sleeve
Wrench
Optional accessories:
Spindle guard
Machine vise
