| US$0.01-0.99 | 100 Pieces (MOQ) |
| Common specification for finned tube bracket | |||
| item | finned tube size (mm) | tube bracket size (mm) OD*ID*WT*TH | material |
| 1 | base tube OD<17 finned tube OD about 39 | 43*17*30*0.8 | galvanized steel / aluminum / copper |
| 2 | base tube OD<18 finned tube OD about 30 | 33*18*30*0.8 | galvanized steel / aluminum / copper |
| 3 | base tube OD<19.05 finned tube OD about 38.1 | 42*20*30*0.8 | galvanized steel / aluminum / copper |
| 4 | base tube OD<27 finned tube OD about 51 | 56.5*27*30*0.8 | galvanized steel / aluminum / copper |
| 5 | base tube OD<27 finned tube OD about 53 | 58.7*27*30*0.8 | galvanized steel / aluminum / copper |
| 6 | base tube OD<27 finned tube OD about 55 | 60.3*27*30*0.8 | galvanized steel / aluminum / copper |
| 7 | base tube OD<27 finned tube OD about 57 | 63.5*27*30*0.8 | galvanized steel / aluminum / copper |
| 8 | base tube OD<27 finned tube OD about 57 | 63.7*27.6*30*0.8 | galvanized steel / aluminum / copper |
| 9 | base tube OD<27 finned tube OD about 60 | 66.7*27*30*0.8 | galvanized steel / aluminum / copper |
| 10 | base tube OD<31.75 finned tube OD about 70 | 76.2*33.75(42)*30*0.8 | galvanized steel / aluminum / copper |
| 11 | base tube OD<32 finned tube OD about 59 | 65*32*30*0.8 | galvanized steel / aluminum / copper |
| 12 | base tube OD<34 finned tube OD about 63 | 69.5*34*30*0.8 | galvanized steel / aluminum / copper |
| 13 | base tube OD<38.1 finned tube OD about 70 | 73*63*30*0.8 | galvanized steel / aluminum / copper |
| 14 | base tube OD<42 finned tube OD about 70 | 72*42*17.5*0.4 | galvanized steel / aluminum / copper |

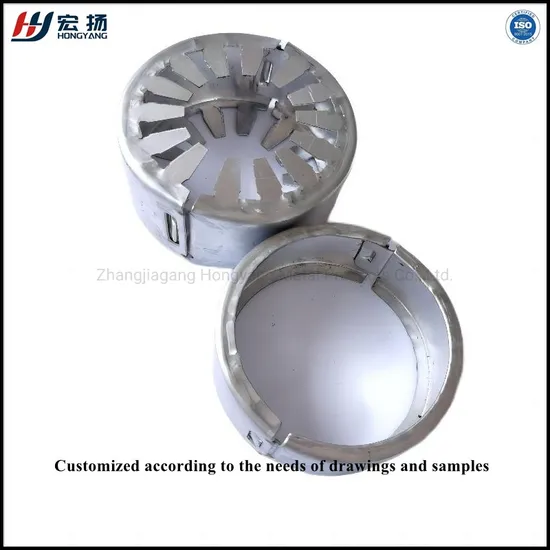

| Item name | aluminum stamping finned tube bracket |
| Materials available | stamping, welding, and CNC machining , die casting, permanent mold casting, forging |
| Design | We use the most advanced mould design software Auto CAD, Pro/E, Solidworks, UG (dwg, dxf, IGS, STP, X-T) |
| Production Shape | Various shapes are available |
| Processing Type | Multistep Progressive Dies |
| Tolerance | as per customers' requirement. |
| Material | Iron, Aluminum, Carbon Steel, Brass, Stainless steel etc. |
| Surface Treatment | Anodize, Chromate, Electrolytic Plating, Nickel Plating, Galvanize, Tempered, Paint, Powder Coating, Polish etc. |
| Type | Cold stamping |
| Industry Of Use | Machinery manufacturing, electronics, aviation, industrial equipment, electrical, architectural decoration, lighting, auto parts, transportation, medical, computer products, agricultural food and so on. |
| Sample Lead-time | Within 1day for samples available from our stock About 1-2 weeks for custom samples |
| Mass Production Lead-time | 3-7 weeks after receiving deposit |
| Payment Terms | EXW/FOB/CFR/CIF Qingdao or any other airport or seaport, China |
| Payment | 30% deposit, balance against B/L copy |
| Delivery Time | 25-60 days based on the different products |
| Package | Carton,Wooden Case or as Required |
| Service Type | OEM & ODM |
| Inspection | In-house or third party, all the products are strictly inspected by skilled QC |
| We are a professional metal processing factory, stamping parts are ours featured products, professional design and manufacture of high - quality stamping parts. Products are made of sheet metal, with advanced equipment and excellent team using solidworks, CAD and other professional production of sheet metal precision stamping products. Any OEM/ODM is acceptable! We have more than 20 years of professional experience, especially in sheet metal hardware products, metal stamping parts and CNC parts manufacturing, hardware accessories. Before mass production, we provide pre-production samples and sheet metal fine stamping products. All products are subject to customer's final confirmation. |
| Q1. What kind of production service do you provide? mould making, CNC machining, stamping, simple assembly and various metal surface treatment. Q2. How about the lead time? Mould : 3-5 weeks Mass production : 2-3 weeks Q3. How about your quality? Our management and production executed strictly according to ISO9001 : 2015 quality System. We will make the operation instruction once the sample is approval. We will 100% inspect the products before shipment. If there is quality problem, we will supply the replacement by our shipping cost. Q4. How long should we take for a quotation? After receiving detail information we will quote within 1 day. Q5. What is your quotation element? Drawing or Sample, Material, finish and Quantity. Q6. What is your payment term? Mould : 50% prepaid, 50% after the mould finish, balance after sample approval. Goods : 30% prepaid, balance T/T before shipment. |
