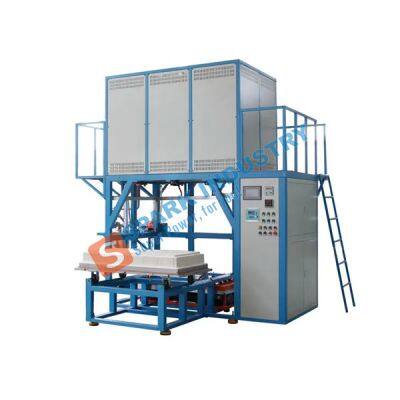

SPK series lifting furnace is a new type of electric furnace independently developed and produced by SPK company. It introduces advanced technology, has advanced and reasonable structure, beautiful and generous appearance. The shell is made of cold-rolled steel plate, processed by advanced CNC machine tool, luxurious and beautiful two-color epoxy powder electrostatic spray molding process, and is resistant to high temperature and corrosion. It uses excellent heating elements. The double-layer furnace shell is equipped with an air cooling system, which can quickly cool down; The furnace has the advantages of balanced temperature field, low surface temperature of furnace body, fast temperature rise and fall rate, and energy saving.
The lifting furnace is applicable to all kinds of small parts, springs and moulds for heat treatment without oxidation and decarburization. It is also suitable for universities, scientific research institutes, industrial and mining enterprises to do powder baking, ceramic sintering, high temperature experiments, chemical analysis, material processing, quality testing and other metal parts heat treatment.
Parameter table of high temperature lifting furnace
|
Rated voltage
| 380V
|
Heating rate
| ≤ 1-30 ℃/min (humanized and adjustable)
|
Heating element
| Resistance wire, SiC heater, MoSi2 heater
|
Temperature control accuracy/constant temperature accuracy
| ± 1 ℃
|
Vacuum degree
| - 0.1mpa (high vacuum degree can reach 300pa)
|
Temperature control mode
| Intelligent program instrument (automatic programmable temperature rise/maintain/drop) PID regulation is adopted.
|
Thermocouple
| B/S Type
|
Furnace material
| It is made of composite alumina fiber, with good thermal insulation, high temperature resistance and thermal shock resistance
|
Vacuum pump
| rotary vane mechanical pump
|
Vacuum degree
| can be customized according to customer requirements
|
various gases
| oxygen, nitrogen, argon, etc
|
Double-circuit protection
| overtemperature, overpressure, overcurrent, couple breaking, power failure, etc
|
The lifting structure automatically
| raises and lowers the spiral lead screw, which is stable without vibration, the furnace mouth is downward, the heat loss is small, and the furnace door can be opened for circulation operation under high temperature
|
The furnace material
| composite alumina fiber, with good thermal insulation, high temperature resistance and thermal shock resistance
|
Furnace shell surface temperature rise
| ≤ 35 ℃
|
