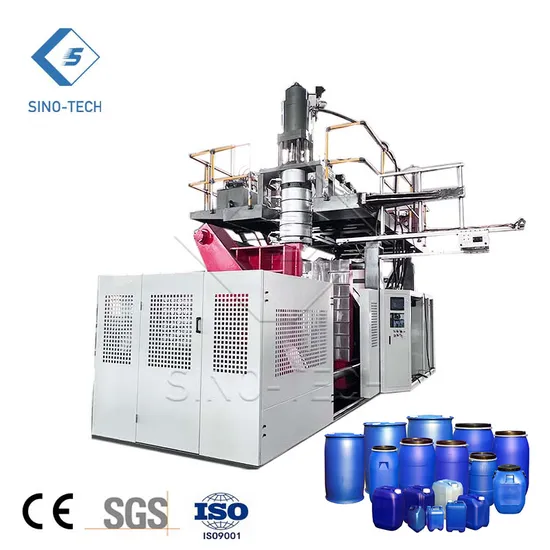

2000L Double Layers Water Tank Blow Molding/Moulding Machine

Product Description

Product Description
Advantages:
1. The temperature controlled by seimens PLC, the extruder stops automatically if the temperature is down because of heater or thermocouples damaged.
2. There is die head pressure testing in the diehead. The PLC shots down the extruders if the pressure inside the die head is too high.
3. The extruders have covers for keeping the temperature, so can make the heating time short
4. The temperature are controled by seimens brand.
5. The extrusion motor is seimens brand.
6. The inverter is seimens brand.
7. More protection in control system.
Detailed Photos
Product Parameters

Technical Specification
Specifications		2000L
Max.Container Capacity	L	2000
Machine Weight	T	48
Machine Dimension(L*W*H)	M	8*8*6.5
Total Power	Kw	336
Average Power Consumption	Kw	218
Die Head
Accumulator Volume	KG	60
Number of Heating Zone	Zone	11
Power of Die Heating	Kw	100
Max. Die-pin Diameter	mm	600
Extruder Unit
Screw Diameter	mm	110/120/110
Screw L/D Ratio	L/D	25/1
Number of Heating Zone	Zone	13
Heating power	Kw	65
Max. Melting Capacity	KG/Hr.	470
Extruder Motor Power	Kw	37/37/45
Clamping Unit
Max.Mold Size(W*H)	mm	1500*2000
Distance Between Platen	mm	1000~3000
Platen Size(W*H)	mm	1800*2000
Clamping Force	KN	1200
Hydraulic System
Main Oil Pump Power	Kw	45
Servo Oil Pump Power	Kw	7.5
Thickness Control System	Point	100

Application

Company Profile
Our Advantages
FAQ
Q: How about your after-sale service ? We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.Q: What is the lead time?For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)Q: What is the warranty period for your machine ?12 months warranty for components and technical support .Q: Do you provide custom machines?Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.Q: How can we install the machine when it arrives?We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.
Q: What's the advantage of SINOTECH?We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.

---
