Vertical Drilling Machine Z5025 Bench Type Drill Machinery Price

Product Description

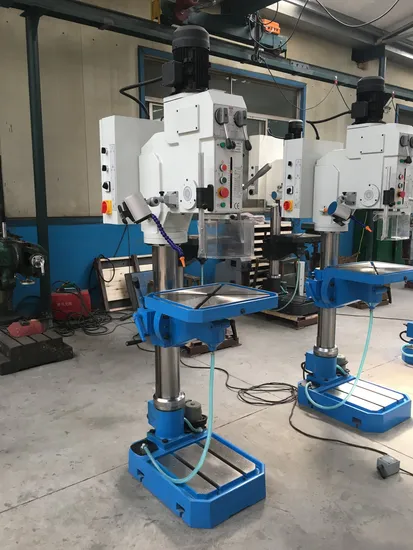

Z5025 Economical Vertical Drilling Machine (Vertical Drill Press machinery)
Product Description
Product Parameters

SPECIFICATIONS	Units	Z5025
Max. drilling dia.	mm	25
Diameter of column	mm	100
Spindle travel	mm	150
Distance between spindle nose and table surface	mm	630
Distance between spindle nose and stand table	mm	1670
Distance from spindle axis to column surface	mm	225
Spindle taper	-	MT3
Spindle speed range	rpm	100-2900
Spindle speeds steps	-	8
Spindle feed range	mm/r	0.07-0.40
Spindle feed steps	-	4
Table size	mm	440
Table travel	mm	560
Stand table size	mm	690*500
Main motor power	kw	0.75/1.1
Coolant motor power	w	40
Machine weight	kg	300
Overall dimension	mm	700*560*1820

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
