50W PA Module 5.8g for Vehicle Jammer

Product Description

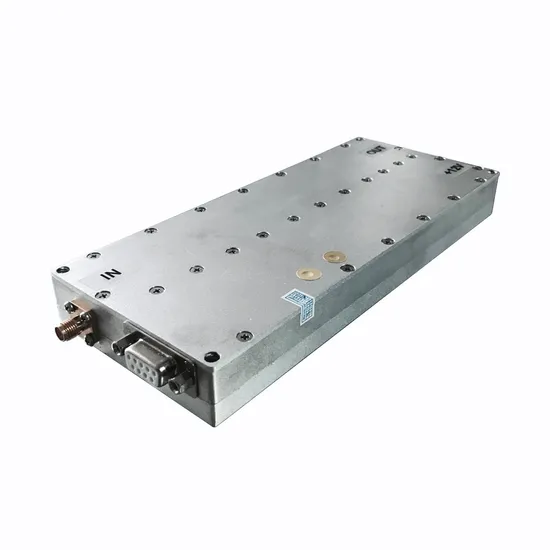

50W PA module 5.8G for Vehicle Jammer
PRODUCT DESCRIPTION:
This Power Amplifier module is working for 5.8G C band, model type: PWR-C-200 with aluminum case, it need operating on heatsink.
This product are using GaN technology, power range can be customized from 40-50dBm. PA are equiped with over-high VSWR and over-high power protection to avoid/reduce the damage from any misoperation. I/O Port is compatible with DB9 serial port.
More function and parameters are avaiable to customized according to actual requirement.
MAIN SPECIFICATION:

Item			Parameters
Frequency Range			5.2-5.4GHz, 5.5-5.6GHz, 5.7-5.9GHz
Gain			>40dB
RF Output Power		50W	47dBm
Input Level			10-15dBm
In-Band Ripple			1dB
Input VSWR			≤1.5
Output VSWR			≤2
Working Voltage		50W	28VDC
Working Current		50W	7A for 28VDC;
Harmonics			≥12dBc @Odd harmonics, ≥15dBc @Even harmonics
Spurious			>60dBc @CW
In/Out Impedance			50ohms
RF Input Port			SMA -Female
RF Output Port			SMA -Female or NK
Power Interface			Pull-core capacitor
Working Temperature			-20~65ºC
Efficiency			≥25% @CW
Dimension			About 180x91x26
Protection (Optional)			Shutdown over more 70ºC, Auto-restart less than 50ºCor after 30s
			Shutdown over Output High-VSWR
I/O Port Definition	DB9,Male (Optional)		PIN1: VSWR (VSWR ALarm)
			PIN2: TEMP (Temperature ALarm)
			PIN3: V+ (Forward Power indicator) (0-4V)
			PIN4: Vt (Temperature indicator,-40 to 150, 0.1-1.5V)
			PIN5: GND (Grounding)
			PIN6: V- (Reversed Power indicator) (0-4V)
			PIN7: Vc (Current Indicator) (0-4V)
			PIN8: PTT (Enable PA. Grounding or Hang in air: ON; +5V: OFF)
			PIN9: ALC (0-5V input, 5V: MAX Output Power,0V: Min Output Power)
	Pull-Core Capacitor (Optional)		SWR: VSWR Alarm over High-VSWR (+3V), and PA shutdown
			TEMP: Alarm Over High-Temperature (+5V), and PA shutdown
			GND: Grounding
			Vt: Indicator for Temperature, Vt=0.5V+TC×10mV/ºC;
			V+: Indicator for Forward RF Power (Max:5V)
			PTT: Enable PA, 5V: PA OFF; Hang in air or grounding: PA ON
	DB9 Male RS485 (Optional)		PIN1,PIN2: RS485A; PIN3,PIN4: RS485B; PIN5: GND
			Data Protocol: China Mobile Standard
PS: Items marked with "Optional" are not standard items, if need those functions should info us before production.
