Basic Info.
Displacement
400cc 800cc 1000cc
Transmission System
Chain Drive
Certification
CE, EEC, EPA
Fuel System
Electronic Fuel Injection
Transmission
CVT, L-H-N-R-P
Shocks
Preloaded, Oil Dampe
Front Tires
Steel Wheel 25x8-12
Rear Tires
Steel Wheel 25x10-12
Brakes (Front/Rear)
Disc brake
Transport Package
Carton Box
Specification
2315x1144x1340mm
Production Capacity
5000pieces/Year
Packaging & Delivery
Package Size
231.00cm * 114.00cm * 134.00cm
Package Gross Weight
585.000kg
Product Description

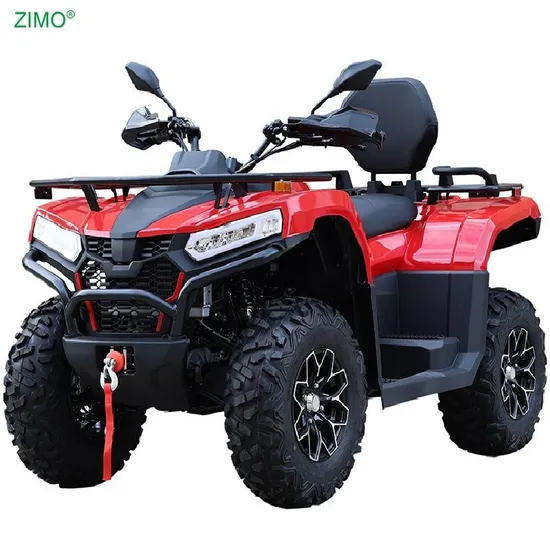

New Off Road Sport Farm Quad Bike 4X4 ATV
ATV (ALL Terrain Vehicle)can not only drive on beaches, but also easily conquer riverbeds, forest paths, streams, and even
more harsh deserts. The fully automatic CVT belt drive is straightforward for all skill levels. the powerful 4-stroke engine
can take you where you need to go.
| Specification | ATV450 | ATV800 | ATV1000 |
| Engine Type | V-Twin Cylinder,4-Stroke |
| Engine Displacement | 391cc | 800cc | 976cc |
| Compression Ratio | 10:01 | 10.3:1 | 10.5:1 |
| Fuel System | Electronic Fuel Injection |
| Max Power Output | 20kw/6500RPM | 44.0kw/6000RPM | 53kw/6500RPM |
| Max Torque | 30N.m/5000RPM | 73N.m/5000RPM | 90N.m/5500RPM |
| Cooling | Liquid Cooled |
| Starter | Electric |
| Transmission | CVT,L-H-N-R-P |
| Front/Rear Suspension | Double A-Arm Independent |
| Shocks | Hydraulic Damping Shock |
| Front Tires | 25x8.00-12 | Steel Wheel 26x9-14 |
| Rear Tires | 25x10.00-12 | Steel Wheel 26x11-14 |
| L X W X H | 232x114x134cm | 228x124x134cm |
| Brakes (Front/Rear) | Disc brake |
| Wheel Base | 53" |
| Ground Clearance | 10" |
| Fuel Capacity | 17L |
| Top Speed | >80km/h |
| Driving Mode | 4WD |
| Certification | EPA |
>>
