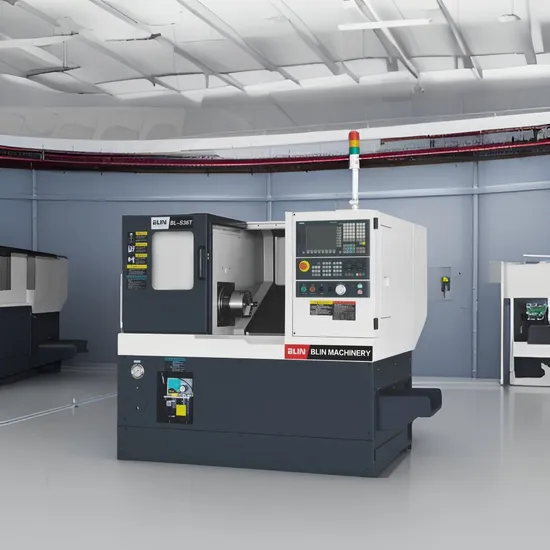

Slant Bed CNC Lathe (BL-S36/36T)

Product Description

- S36 mount gang tool device, S36T mount 8 station HYDRAULIC-SERVO tool turret.
- Super compact structure, big inside space, modern appearance
- Adopt TAIWAN technology, designed by TAIWAN engineer, most parts adopt GERMANY/JAPAN/TAIWAN brand.
- Bed adopt flat bed, slide board adopt 30°slant design(structure similar as JAPAN TSUGAMI M06/08), high rigidity, good machining flexibility, easy for chip conveying
- Adopt modularization design, has strong extended function, easy for various especial configuration choice, such as tool setter, robot etc.
- Adopt HT300 resin sand cast iron, after aging treatment and FEA analysis, small distortion, good torsional strength, good heat stability.
- Frame adopt oil-coolant separation design, adopt independent coolant tank
- Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,high speed,wide adjustment range
- Adopt high precision pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkager, no gap,high transmission rigidity, can realize μ class precise turning.
- Adopt high precision wide linear guideway, high rigidity and long using lifespan, fast moving speed, good accuracy holding, suitable for precise machining
- For S36T, mount energy-storage tank,reduce pressure fluctuation during tool change
- Can mount right-setting or back-setting chip conveyor
Details:

Item	Specification	Unit	BL-S36	BL-S36T
Capacity	Chuck size	/	6''
	Max. swing dia. over bed	mm	Φ460
	Max. swing dia. over slide	mm	Φ130	Φ265
	Max. turning length	mm	330	260
	Max. turning dia.		Φ300	Φ320
Spindle	Spindle bore	mm	Φ56
	Spindle end type	/	A2-5
	Spindle speed	rpm	5000
	Max. bar through dia.	mm	Φ44
	Spindle motor power	kw	5.5
X/Z axes	X axes travel	mm	350	160+20
	Z axes effective travel	mm	350	300
	X/Z axes motor	Nm	6/6
	X/Z axes rapid moving speed	m/min	28
	X/Z axes ball screw dia./pitch	mm	32/12
	X/Z axes linear guideway width	mm	30/35
Tool turret	Tool turret type	/	Gang tool	Hydraulic-servo tool turret
	Tool qty	/	5	8
	Vicinal tool changing time	s	/	0.4
	Farthest tool changing time	s	/	0.57
	Toolshank size	mm	20×20, Φ32
Tailstock	Tailstock	/	N/A
Accuracy	Ex-circle finish turning accuracy	/	IT6
	Finish turning roughness	mm	Ra0.4~1.6
	Finish turning roundness	mm	≤0.003
	Positioning accuracy(X/Z)	mm	0.005/0.008
	Repeat positioning accuracy(X/Z)	mm	0.002/0.004
Others	Coolant pump power	w	480
	Coolant flow	m³/h	2.5
	Overall size	mm	1650×1600×1550/2450×1600×1550 (exclude/include chip conveyor)
	N.W.	kg	2300	2400

Main parts list:

Item	Brand
CNC controller	GERMANY-SIEMENS
X,Z axes driver&motor	GERMANY-SIEMENS
Spindle driver&motor	GERMANY-SIEMENS
Spindle unit	TAIWAN-VOLIS/KENTURN
Ball screw	TAIWAN-PMI/HIWIN
Ball screw bearing	JAPAN-NSK/NTN
Linear guideway	TAIWAN PMI/HIWIN
Tool turret	GERMANY-SAUTER/INDIA PRAGATI
Lubrication system	TAIWAN-ISHAN
Rotary oil cylinder&chuck	TAIWAN-AUTOGRIP
Hydraulic parts	TAIWAN/JAPAN
Coolant pump	Joint-venture
MPG	USA-HEDSS
Tri-color indication lamp	KOREA-QLIGHT
Breaker	FRANCE-SCHNEIDER
AC contactor	FRANCE-SCHNEIDER
Relay	JAPAN-OMRON
DC switch power supply	TAIWAN-MEANWELL
Terminal block	GERMANY-WEIDMULLER
Synchronous belt	USA-GATES
Synchronous belt wheel	TAIWAN-PTP
Nuts	TAIWAN-YINSH
Shaft coulping	GERMANY-KTR/R+W
Scrapping plate Extensible cover	TAIWAN-WANHE
Chip conveyor&chip bucket	TAIWAN-WANHE
Coolant pipe	TAIWAN-WEIDING

Standard configuration:
-SIEMENS 808D ADVANCED CNC controller
-Hydraulic chuck
-Gang tool(S36)/8 station Hydraulic-servo tool turret(S36T)
Optional configuration:
-SIEMENS 828D/FANUC 0i TF CNC controller
-Chip conveyor
-Tool setting probe
