Performance and use:

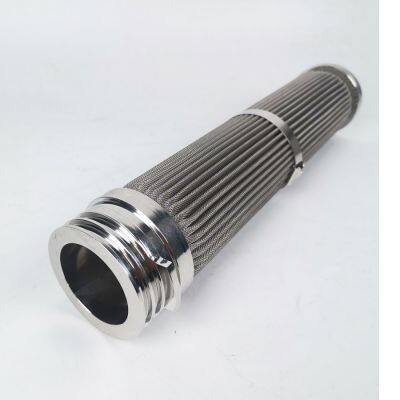

Applicable to high temperature, high pressure, high viscosity polymer filtration, filter out solid particles in the medium, and ensure the cleanliness of the medium.
Made of 100% stainless steel material, can be cleaned and used repeatedly.
The filter element made of imported stainless steel fiber sintered felt has good air permeability, large dirt holding capacity and long service life.
The filter element made of stainless steel woven mesh has uniform pore size, high strength, good processability and easy cleaning.
The corrugated filter element is suitable for chemical fiber and textile systems, and the disc filter element is suitable for plastic industries such as film and packaging materials.
| Difference | Sintered mesh filter element | Sintered felt filter element |
| Material | Cleaning cycle | Metal fibers of different wire diameters |
| Process | Produced at 1260℃ | Produced at 1180°C |
| Structure | Multi-layer wire mesh composite with uniform filter aperture | With multiple gradient pore size layers, it has a greater dirt holding capacity |
| Blind hole rate | Basically no blind holes | More or less blind holes |
| Filter accuracy | 1-300um | 2-60um |
| Cleaning cycle | Both are materials that can be reused after cleaning, but sintered felt has a larger dirt holding capacity and a longer cleaning cycle. |
Technical parameters:
Working pressure: ≤31.7Mpa
Working temperature: ≤300℃
Medium viscosity: ≤260Pa▪s
Allowable pressure difference: ≤10Mpa
| Breathability | Porosity | Pollution holding capacity | thickness | Breaking strength |
| L/(min.dm2) | (%) | (mg/cm2) | (mm) | (MPa) |
| Basic Value | Deviation | Basic Value | Deviation | Basic Value | Deviation | Basic Value | Deviation | Basic Value | Deviation |
| 47 | 10% | 75 | 10% | 5 | 10% | 0.3 | 10% | 32 | 10% |
| 63 | 76 | 6.5 | 0.3 | 36 |
| 105 | 75 | 7.8 | 0.37 | 32 |
| 205 | 79 | 8.6 | 0.4 | 23 |
| 280 | 80 | 15.5 | 0.48 | 23 |
| 355 | 80 | 19 | 0.62 | 20 |
| 520 | 80 | 26 | 0.63 | 23 |
| 670 | 78 | 29 | 0.68 | 26 |
| 1300 | 85 | 36 | 0.62 | 28 |
>>
