Automatic Feeding Rtj Groove 50-610mm 50-508 Pneumatic Flange Facing Machine

Product Description

Product Description

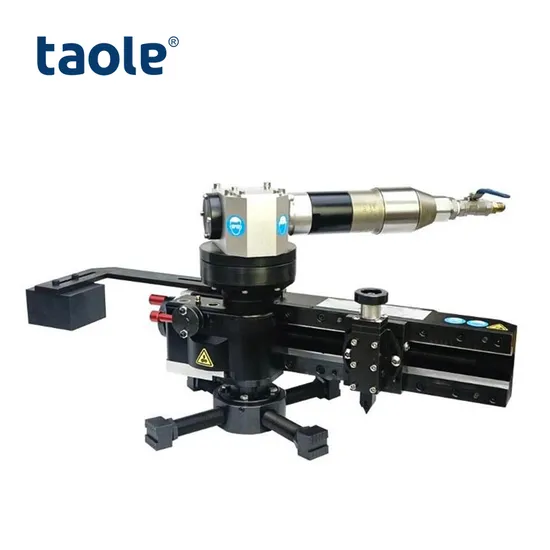

TFS/P/H Series Flange facer machine are multi-functional machine for flage maching.
Suitable for all types of flange facing, Seal groove machining, weld prep and counter boring. Specially for pipes, valve, pump flanges ETC.
The product make up with three parts, have four clamp support, internal mounted, small working radius. The novel tool holder design can be rotated 360 degree with higher efficiency. Suitable for all types of flange facing, Seal groove machining, weld prep and counter boring.
Machine Features 1.Compact structure, light weight, easy on carry and load
2.Have scale of feed hand wheel, improve feed accuracy
3.Automatic feeding in the axial direction and the radial direction with high efficiency
4.Horizontal, Vertical inverted etc Available for any direction
5. Could process flat facing, water lining, continuous grooving RTJ groove etc
6. Driven option with Servo Electric, Pneumatic,Hydraulic and CNC.
Product parameter table

Model Type	Model	Facing Range	Mounting Range	Tool Feed Stroke	Tool Hoder	Rotation Speed	Machine Weight Packing Size
1)TFP Pneumatic 2)TFS Servo Power 3)TFH Hydraulic		OD MM	ID MM	mm	Swivel Angel
	I610	50-610	50-508	50	±30 degree	0-42r/min	62/105KGS 760*550*540mm
	I1000	153-1000	145-813	102	±30 degree	0-33r/min	180/275KGS 1080*760*950mm
	I1650	500-1650	500-1500	102	±30 degree	0-32r/min	420/450KGS 1510*820*900mm
	I2000	762-2000	604-1830	102	±30 degree	0-22r/min	500/560KGS 2080*880*1050mm
	I3000	1150-3000	1120-2800	102	±30 degree	3-12r/min	620/720KGS 3120*980*1100

Machine Operate Appliaction

Flange surface

Seal groove(RF,RTJ,etc.)

Flange spiral sealing line

Flange concentric circle sealing line

On site cases
Machine Packing
Company Profile
SHANGHAI TAOLE MACHINE CO.,LTD is a Leading professional Manufacturer, Supplier and Exporter of a wide variety of weld preparation machines which widely used in Steel Construction, Shipbuilding, Aerospace, Pressure Vessel , Petrochemical, Oil & Gas and all welding industrial manufacturing. We export our products in more than 50 markets including Australia, Russia, Asia, New Zealand, Europe market, etc. We make contributions to improve the efficiency on metal edge beveling and milling for weld preparation.With our own production team, development team, shipping team, sales and after-sales service team for customer assistance. Our machines are well accepted with high reputation in both domestic and overseas markets with more than 18 years' experience in this industry since 2004. Our engineer team keep developing and updating machine based on energy saving, high efficiency, safety purpose. Our mission is "QUALITY, SERVICE and COMMITMENT". Provide the best solution for customer with high quality and great service.
Certificates and Exhibitions
FAQ
Q1: What is the power supply of the machine?
A: Optional Power Supply at 220V/380/415V 50Hz. Customized power /motor/logo/Color available for OEM service.
Q2: Why comes multi models and how should I Choose and understand?
A: We have different models based on customer's requirements. Mainly different on power, Cutter head, bevel angel, or special bevel joint required. Please send a inquiry and share your requirements ( Metal Sheet specification width * length * thickness, required bevel joint and angel). We will present you with best solution based on general conclusion.
Q3: What is the delivery time?
A: Standard machines are stock available or spare parts available which able to be ready in 3-7 days. If you have special requirements or customized service. Normally takes 10-20 days after order confirm.
Q4: What is the warranty period and after sales service?
A: We provide 1 year warranty for machine except wearing parts or consumables. Optional for Video Guide, Online Service or local Service by third party. All spare parts available in both Shanghai and Kun Shan Warehouse in China for fast moving and shipping.
Q5: What is your payment Teams?
A: We welcome and try multi payment terms depends on order value and necessary. Will suggest 100% payment against fast shipment. Deposit and balance % against cycle orders.
Q6: How do you pack it?
A: Small machine tools packed in tool box and carton boxes for safety shipments by courier express. Heavy machines weight higher than 20 kgs packed in wooden cases pallet against safety shipment by Air or Sea. Will suggest bulk shipments by sea considering machine sizes and weight.
Q7: Are you Manufacture and what is your products range?
A: Yes. We are manufacture for beveling machine since 2000.Welcome to visit our factory in Kun shan City. We concentrating on metal steel beveling machine for both plate and pipes against welding preparation. Products including Plate Beveler, Edge Milling Machine, Pipe beveling, pipe cutting beveling machine, Edge rounding /Chamfering, Slag removal with standard and customized solutions.
Welcome to contact us anytime for any inquiry or more informations.

---
