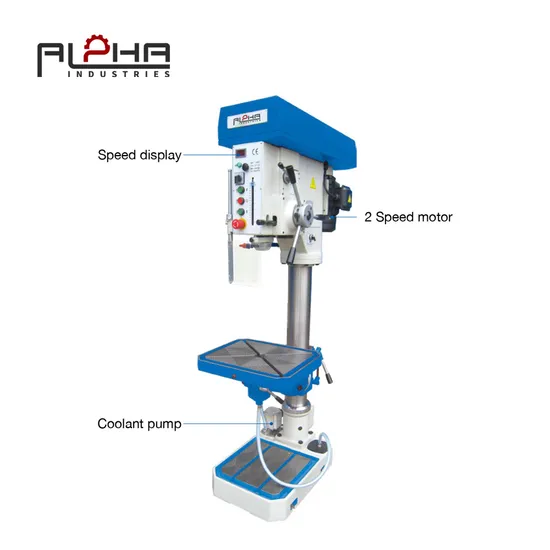

High Precision Metal Lathe Heavy Machinery D350 Drilling Machine

Product Description

Product Description
Two-speed motor
Aluminium belt wheel stepless timing
Mechanical feed
Particular device for dismounting cutters
Digital readout for the display of speed
With coolant device
With fender device
Supply 125mm precision vice and TS250 rotation worktable as special accessories
Product Parameters

Model NO.	D350	Controlling Mode	Artificial
Automatic Grade	Manual	Precision	High Precision
Certification	CE, ISO 9001	Condition	New
Specification	965x515x1920mm	Trademark	Alpha industries
Origin	China	Production Capacity	100 Sets/Year

Technical Parameters
Model No.	Unit	D350
Max. drilling diameter(steel)	mm	Φ35
Max. tapping diameter		M20
Max. travel of spindle	mm	160
Max. distance from spindle to generating line of column	mm	320
Max. distance from spindle nose to surface of worktable	mm	625
Max. distance from spindle nose to surface of base worktable	mm	1180
Max travel of worktable and bracket	mm	585
Spindle taper bore		MT4
Spindle speed steps	steps	Stepless
Spindle speed range	r/min	85~1800
Spindle feed steps		3
Spindle feed range	mm/r	0.1,0.2,0.3
Dimension of worktable	mm	500x420
Effective working area of worktable	mm	370x360
Diameter of column	mm	Φ120
Power of motor	W	1000/1700
Machine dimension	mm	965x515x1920
Packing dimension	mm	1100x600x2010
N.W./G.W.	kg	450/500

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
