High Quality 40m3/H 50m3/H 80m3/H 90m3/H Diesel Stationary Concrete Pump with Mixer

Product Description

Stationary Concrete Pump For Sale

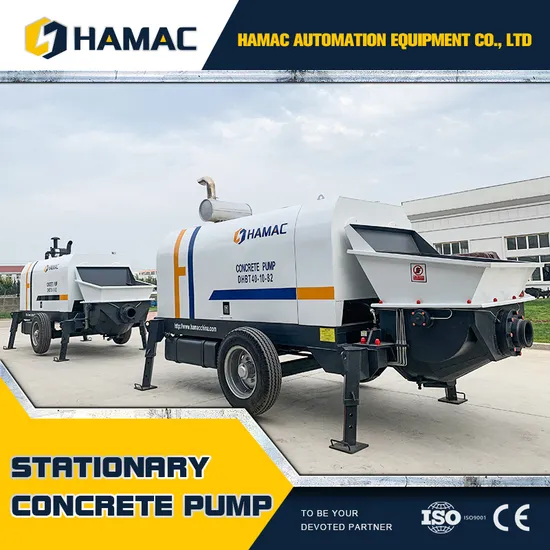

Stationary concrete pump for sale is a star product in concrete pumping industry. This type concrete trailer pump is mounted on a trailer, and it is commonly referred to as trailer-mounted concrete pump. It is also called trailer concrete pump or static concrete pump. We have two different types of this concrete pump trailer. One type is diesel engine driven, the other is electric motor driven. Electric VS Diesel
There are two types trailer concrete pump which are manufactured by HAMAC. These two models concrete pump trailer for sales are suitable for different working condition. The client can compare their features and then decide which type is more suitable for your projects in Philippines.
Electric concrete pump trailer is driven by industrial electricity, it is 3 phases. That means, there should be a 3 phase power supply at site; Diesel trailer concrete pump is driven by diesel engine, it can work everywhere as long as there is diesel; Electric towed concrete pump is with low noise when it is working and no pollutants are emitted into the air; Diesel concrete pump for sale is with relatively loud noise, and the pollutants are emitted into the air; If the same model, diesel concrete pump trailer is more expensive than the electrical concrete trailer pump; For the diesel trailer concrete pump, you have to maintain the diesel engine frequently, but for the electric type trailer pumpcrete, no need; So, you can consider the above factors of these two types stationary pumpcrete tailer, and finally to buy trailer concrete pump. According to our experience, the diesel type concrete trailer pump is more popular. 90% clients will choose this one. Because it can work everywhere no matter there is power supply or not. Actually, it is a non-road diesel engine, there is not strict requirement for the environment protection.
Vertical height and horizontal distance that trailer pump can pump
The pumping horizontal distance and vertical height of the concrete drag pump are related to the concrete grade and the outlet pressure of the trailer concrete pump. Generally speaking, the higher the concrete grade is, the smaller horizontal distance and vertical height will be. The outlet pressure of concrete pumps depends on the design of different manufacturers and models.
The common concrete grade is generally C30. The DHBT40-10-82 concrete pump trailer produced by HAMAC can reach a vertical height of 70 meters and a horizontal distance of 300 meters. The requirement is that the maximum aggregate size in the concrete should not exceed 40 mm, and the output can reach 40 cubic meters per hour.
We can supply different models of stationary concrete pumps with different heights and horizontal distances. Contact us to get our technical guidance.

Item	Unit	DHBT30	DHBT40	DHBT50	DHBT60	DHBT80	DHBT90
Theoretical Capacity	M³/H	30	40	50	60	80	90
Delivery Pressure	Mpa	10	10	10	13	16	22
Max. Pump Times	Times/Min	24	20	22	22	23	23
Delivery Height	M	120	120	120	180	180	350
Delivery Distance	M	500	500	500	600	1000	1500
Distribution Valve Type		S Tube Valve	S Tube Valve	S Tube Valve	S Tube Valve	S Tube Valve	S Tube Valve
Delivery Cylinder Type	Mm	Φ140×1200	Φ180×1300	Φ180×1300	Φ200×1650	Φ200×1650	Φ200×1800
Main Oil Pump	Mm	Φ80/55×1200	Φ100/70×1300	Φ110/70×1300	Φ125/80×1650	Φ125/Φ80×1650	Φ125/Φ80×1650
Oil Tank Capacity	L	260	370	370	560	560	560
Hopper Capacity	L	400	400	400	800	800	800
Filling Height	Mm	1100	1100	1100	1400	1400	1400
Outlet Diameter	Mm	Φ125	Φ150	Φ150	Φ180	Φ180	Φ200
Delivery Pipe Inner Diameter	Mm	Φ125/Φ100	Φ125	Φ125	Φ125	Φ125	Φ125
Engine Power	Kw	56	82	82	129	129/145	199
Rated Spped	R/Min	2200	2200	2300	2300	2300	2300
Idling Speed	R/Min	800	800	800	800	800	800
Voltage	V	24V	24V	24V	24V	24V	24V
Fuel Tank	L	150	150	150	150	150	150
Hydraulic Oil-Way Type		Open	Open	Open	Open	Open	Open
Max. Oil Pressure	MPa	26	31.5	31.5	31.5	31.5	31.5
Max. Oil Pressure For Mixing System	MPa	6-8	6-8	6-8	6-8	6-8	6-8
Max. Mixing Speed	R/Min	24	24	24	24	24	24
Slump	Mm	80~200	80~200	80~200	80~200	80~200	80~200
Maximum Aggregate Size	Mm	≤30(≤20)	Aggregate 40	Pebble 50, Aggregate 40	Pebble 50, Aggregate 40	Pebble 50, Aggregate 40	Pebble 50, Aggregate 40
Overall Dimension	Mm	4970×1680 ×2580	5270×1860 ×2580	6600×1930 ×2190	6600×1930 ×2190	6600×1930 ×2190	6800×2100 ×2350
Wight	Kg	3500	4500	4500	6500	6800	7000
Towing Speed	Km/H	≤8	≤8	≤8	≤8	≤8	≤8

---
