Description:
This device is a light weight ,portable,battery powered x-ray scanning system dessigned in co-operation with first responders and EOD teams to meet the need of the field operative . It is light weight and comes with user friendly software that helps operators in understanding the functions and operations in a less time. The aim of portable x-ray scanner is to build own capacity and attain self-sufficiency in explosive sweeping through use of most modern gadgetry which will help in detection and locating the explosives hide in bags or other concealed devices.
Applied scene:
Security check,Exploder Clearing, Crime investigation at scene.
Forensic autopsy,check whether there is a foreign body in the body
Nondestructive testing of the industrial sector. Safety check in Security Service.
Custom house,Post and telecommuni-cations Departments.
Features:
Wide application range,Can be assembliedr
apidly on-site.
Imaging plate using amorphous silicon
technology,image is very clear.
Can operate with remote control
in the rear.
Powerful image enhancement andAnalysis tools.
Intuitive interface,Image splicing
infinite,simplicity of operation.
User-friendly software.
Can log in,real-name use system,
Convenient for later verification.
Specification:
A
| Technical Specification of the imaging plate
|
1
| Sensor type
| CsI Direct Deposit
|
2
| Imaging area
| 433.7 x 354.8 mm2
|
3
| Pixel pitch
| 154 μm
|
| Pixel array
| 2816X2304
|
4
| Grayscale
| 16 bits
|
| Limiting Resolution
| 3.3 lp/m
|
| Dynamic Range
| ＞780dB
|
| Communication Interface
| GbitE
|
| Image Acquisition Time
| 2-3s
|
|
Exposure Control
| F²AED
|
| Manual
|
| External Triggner
|
5
| Operating environment
| Natural cooling
|
8
| Storage temperature
| -10℃-55℃
|
9
| Storage humidity
| 10%-90% RH
|
10
| Size
| 460x384x15mm3
|
11
| Weight
| 3.5kg
|
12
| Outer cover
| Carbon fiber plate high-strength aluminum alloy
|
13
| Power dissipation
| | 14
| Power supply
| 100-250V AC
|
15
| Frequency
| 50/60Hz
|
16
| Wireless communication
| Wi-Fi , no less than 30m
|
Technical Specification – Portable X-Ray Generator
|
1
| Operating Mode
|
Pulse, it launches 4000 pulses each time when charged fully
|
2
| Best Detecting Distance
| 0.7m
|
3
| Voltage
| 150kV
|
4
| Current
| 0.5mA
|
5
| Penetration
| 22mm steel
|
6
| Weight
| 5.5Kg
|
Technical Specification – Imaging Station (PC)
|
1
| Type
| Laptop computer
|
2
| Processor
| Intel Core i-3, Dual Core Display
|
3
| Display
| 14” Full High Definition LED Display
|
4
| Memory
| 2GB
|
5
| Hard Drive
| 250GB
|
6
| Optical Drive
| DVD +/-RW Media Bay Drive
|
7
| Operating system
| English MS Windows
|
8
|
Software
| Adjustable X-Ray source parameters
(kV, mA & time) Standard,
inverted and false color images Rotate, Histogram,
Pan, Zoom, Deep FocusTM
|

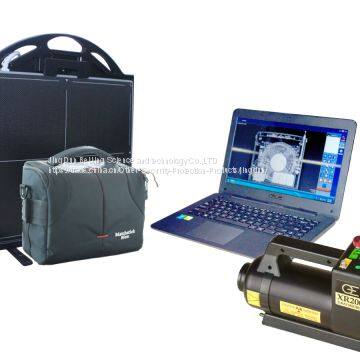

The system comprises
A robust detector pannel
A portable x-ray generator
A laptop imagingstation
Batteries and chargers
Remote control
Sofeware
>>
