Customized Plain Twill Weave Aramid Fiber Fabric for Bulletproof Helmet

Product Description

Aramid Kevlar Cloth
Plain/twill weave
Description: It is a new synthetic fiber with high strength and modulus.
It has good performance of insulation, heat resistance, aging resistance, flame retardant and spinnibility.
Technical Data Sheet:

Type	Yarn		Weave	Density(10mm)		Weight	Thickness	Width(cm)
	Warp	Weft		Warp	Weft	(g/m2)	(mm)
50P	200D	200D	Plain	11.25	11.25	50	0.09	10-300
100P	600D	600D	Plain	8	8	100	0.15	10-300
115P	800D	800D	Plain	7	7	115	0.16	10-300
140P	1000D	1000D	Plain	6	6	140	0.22	10-300
160P	1000D	1000D	Plain	7	7	160	0.24	10-300
160T	1000D	1000D	Twill	7	7	160	0.24	10-300
200P	1000D	1000D	Plain	9	9	200	0.26	10-300
200T	1000D	1000D	Twill	9	9	200	0.26	10-300
170P	1500D	1500D	Plain	5	5	170	0.23	10-300
200P	1500D	1500D	Plain	6	6	200	0.26	10-300
220T	1500D	1500D	Twill	6.5	6.5	220	0.28	10-300
300P	3000D	3000D	Plain	4.5	4.5	300	0.42	10-300
300T	3000D	3000D	Twill	4.5	4.5	300	0.42	10-300
400P	3000D	3000D	Plain	6	6	400	0.55	10-300
400T	3000D	3000D	Twill	6	6	400	0.55	10-300
450P	3000D	3000D	Plain	6.5	6.5	450	0.7	10-300

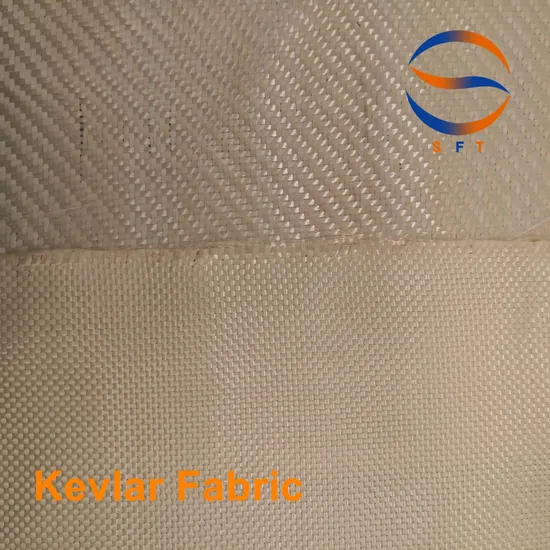

Picture of Product:
Palin Weave
Twill Weave:
Carton Packing:
Pallet Packing:
SFT Industries Co., Ltd is specialized in high performance fiber reinforced plastics materials, integrating development, production and trade together. Our main products include carbon fiber, aramid fiber, PVC foam core, FRP tools and a range of FRP related products to many countries. Serving for boat building, wind energy, traffic vehicle, sports equipment, anti-corrosion, electrical insulation, high temperature resistant etc.
Our insistance and devotion will bring you satisfactory service. It's our honor to become your reliable partners. Hope to develop with you in the future.

---
