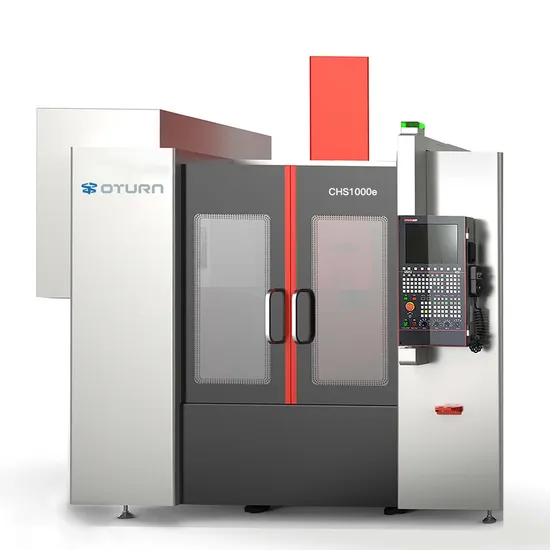

High Quality 3 Axis/4 Axis/5 Axis CNC Vertical Machining Center Chs1000e

Product Description

Product Description
High-speed CNC vertical machining center CHS1000e has the characteristics of high rigidity, high precision and high efficiency processing. The column adopts a herringbone design with a large span, which can greatly enhance the bending and torsion strength of the column; the worktable adopts a reasonable slider span and is surface quenched to make the worktable evenly stressed and improve the hardness; the bed adopts a trapezoidal cross-section to reduce the The center of gravity improves torsional strength; the entire machine uses finite element analysis to design each component to provide the best overall stability.
The three-axis rapid feed is 48M/min, the T-T tool change time is only 4 seconds, the tool magazine is fully loaded, 24 hours of tool change without alarm, and the 3-dimensional inspection of each machine's trial processing sample has passed, ensuring the high efficiency, continuous stability of the machine tool after leaving the factory. It is suitable for various two- and three-dimensional concave and convex models with complex shapes and complex cavities and surfaces. It is also suitable for milling, drilling, expanding and boring of valves, cams, molds, plates and boxes in the manufacturing industry. Tapping and other processing processes are more suitable for both small and medium-sized batches of multi-variety processing and production, and can also be entered into automatic lines for mass production.
Adopting Siemens' latest 828D system, 10.4-inch large LCD display, self-diagnosis and other functions make the use and maintenance of machine tools more convenient and faster; the high-speed bus communication method greatly improves the data processing capabilities and control performance of the CNC system, and facilitates large-capacity The program is quickly and efficiently transmitted and processed online.
Product Parameters

Item		Unit	Specification
Travel	X/Y/Z axis travel	mm	1000×600×500
	Distance from spindle end face to worktable	mm	100-600
	Distance from spindle center to column guide surface	mm	628
Worktable	Worktable (L × W)	mm	1100×500
	shaped groove (number of grooves-width×pitch)	mm	5-18×100
	Max. load of worktable	kg	600
Three-axis feed	X/Y/Z axis rapid feed	m/min	48/48/48
	Cutting feed rate	mm/min	1-15000
Spindle	Spindle specifications (installation diameter/transmission mode)	mm	190/Built in
	Spindle taper hole	mm	A63
	Max. spindle speed	r/min	24000
	Spindle motor power (rated)	kW	57
	Spindle motor torque (rated)	N.m	55
Tool magazine	Tool magazine capacity		24T
	Tool exchange time (T-T)	s	4
	Max. tool diameter (full tool/empty tool)	mm	70/120
	Max. tool length	Mm	300
	Max. tool weight	kg	8
Guide	X-axis guide rail (size/number of sliders)	mm	35/2(Roller)
	Y-axis guide rail (size/number of sliders)		35/2(Roller)
	Z-axis guide rail (size/number of sliders)		35/3(Roller)
Screw	X-axis screw		Φ40×16
	Y-axis screw		Φ40×16
	Z-axis screw		Φ40×16
Accuracy	Positioning accuracy	mm	±0.005/300
	Repeatability	mm	±0.003/300
Lubrication system	Lubrication unit capacity	L	4
	Oil separator type		Volumetric
Cutting fluid	Water tank capacity	L	240
	Cutting pump parameters		0.32Mpa×16L/min
Other	Air demand	kg/c	≥6
	Air flow	mm3/min	≥0.4
	Battery capacity	KVA	22.5
	Machine weight (combined)	T	6
	Mechanical dimensions (LxWxH)	mm	2653×3122×2635

Products Configurations
Company Profile
Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines ?
Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .
Q2: What's your main products of your company?
We specialized in all kinds of machines,such as CNC Lathe Machine ,CNC Milling Machine,CNC Turning Maching,Vertical Machining Center ,Horizontal Machining Center,Lathe Machines,Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong.You are warmly welcomed to visit us.
Q4. How do you transport it?
Provide Transportation Solution DDP/CIF/FOB/FCA
Q5: What's the Payment Terms ?
T/T ,30% initial payment when order,70% balance payment before shipment .
06: What's the MoQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
2.lf need ClF Price, please kindly tell us the port of destination.

---
