Automobile Tension Pulley with Idler Bearing

Product Description

High reliability has been achieved by special grease and high performance seal. We offers a wide line of bearings to meet the needs of every type of belt and layout...
TensionerT and Idler
This bearing is located in the front of an internal combustion engine. It provides tension to the belt which drives from the crankshaft, to the cam shaft, alternator, air compressor, power steering pump, and water pump. It must handle high temperatures, high-speed rotation, and belt vibration because of contiguity in the engine used in order to make the direction of a belt change. These bearings are designed against different specification from normal deep groove bearings. These bearing are divided roughly into two types and identified by the usage, respectively.
1) Tensioner bearing
Bearing which applies tension to the drive belt, and prevents slack.
2) Idler bearing
Bearing which affects a change in the angle of direction which a belt runs or to adjust contact width with a pulley.
Structure
Sealed groove bearing is usually used and it also has built-in heat-resistant grease, a seal, and retainer and the structure can withstand a temperature change or change of belt tension when the car is running.
1)Tensioner bearing
The rotation center is movable in order to give tension to the belt.
2) Idler Bearing
Unitized with the pulley.
Product Function
The following are important functions of these indispensable parts for the smooth drive of the belt system.
1)To add initial tension by using the pivot hole and eccentric hole which absorb tension changes in the timing belt where the temperature changes when the engine is running.
2)To prevent any belt-skip, which would cause mis-matching of the valve timing between crank shaft and cam shaft

Construction of Tensioner and Idler pully bearing's location in working

SKF NO				NTN	NSK
VKM12380	VKM33002	VKM75006	VKM81004	JPU60-71+JF129	57TB0505B01
VKM12151	VKM71000	VKM75008	VKM81100	JPU60-283+JF485	62TB0813B01
VKM11010	VKM71401	VKM75033	VKM81200	JPU60-216+JF391	50TB0526B01
VKM13244	VKM24212	VKM75044	VKM81201	JPU60-257	62TB0520B01
VKM13100	VKM33004	VKM75100	VKM84000	JPU57-54+JF574	50TB0101
VKM13201	VKM33017	VKM75101	VKM84201	JPU60-215	62TB0629B06
VKM13240	VKM38001	VKM12001	VKM84600	JPU55-54	62TB0629B04
VKM13200	VKM38004	VKM12010	VKM84601	JPU55-002B-1	62TB0103
VKM14000	VKM38012	VKM12012	VKM85000	JPU58-1+JF181	57TB0609B01
VKM13241	VKM71001	VKM12101	VKM23120	JPU60-129+JF337	70TB0603
VKM11000	VKM71002	VKM12630	VKM23122	JPU52-159	50TB0112B01
VKM12200	VKM71003	VKM13200	VKM23130	JPU52-131	56TB0503B01
VKM14100	VKM71005	VKM22242	VKM24213	JPU42-17+JF417	52TB0529B01
VKM14103	VKM71007	VKM22630	VKM24214	JPU50-6+JF265	57TB3705B01
VKM14105	VKM71012	VKM23122	VKM33023	JPU52-157	57TB3701
VKM14201	VKM71014	VKM23244	VKM36022	JPU52-128+JF434	56TB0602B01
VKM14210	VKM71100	VKM26100	VKM36031	JPU52-111+JF434	60TB041B02
VKM14301	VKM71101	VKM36014	VKM76200	X3-JPU60-27	60TB026B02
VKM15210	VKM71200	VKM38004	13504-87301	JPU50-69	60TB062B01
VKM15215	VKM71201	VKM73600	13505-87303	JPU50-66	52TB28028\B01
VKM16000	VKM71202	VKM74501	2108-1006210	5JPU60-124+JF183	60TB0637
VKM16001	VKM71400	VKM75108	2110-1041056	JPU42-18	60TB039B09
VKM16101	VKM71401	VKM75130	2112-1006120	JPU50-80+JF513	60TB039B01
VKM16112	VKM71404	VKM75144	2112-1006135	JPU58-55	60TB048B01
VKM16210	VKM72000	VKM75601	2112-1006135-01	JPU58-015A-3	60TB041B12
VKM22151	VKM72004	VKM75612	B660-12-700F	JPU58-58	60TB041
VKM22380	VKM73000	VKM75613	F-212423	JPU60-71+JF121	55TB0520B01
VKM23240	VKM73005	VKM75615	F-224134	JPU60-260+JF397	50TB0524B03
VKM23241	VKM73011	VKM75616	F-226239.2	JPU60-163+JF410	70TB0603
VKM24100	VKM73101	VKM76001	F-229515	JPU55-30	52TB0514B01
VKM24107	VKM73112	VKM76102	F-231137	JPU50-003A-1	54TB0507B01
VKM24210	VKM74001	VKM76103	F-140071	NEP52-019A-1P
VKM24211	VKM74001	VKM76202	F-125135.05	NEP57.6-002B-1P
VKM25212	VKM74004	VKM76203	F-123259	NEP62-008B-1P
VKM26020	VKM74200	VKM77002	F-231338	NEP57-013A-1P
VKM26101	VKM74201	VKM77300	F-233879	NEP51-OO2B-6
VKM26102	VKM74501	VKM77401	F-140072	NEP62-011A-1P
VKM26114	VKM74600	VKM77500	OK247-12-711	NEP52.8-002A-1P
VKM26123	VKM75000	VKM79001	OK551-12-740A	NEP54-002-1P
VKM26125	VKM75001	VKM80000
VKM26211	VKM75004	VKM81001
VKM28000	VKM75005	VKM81002

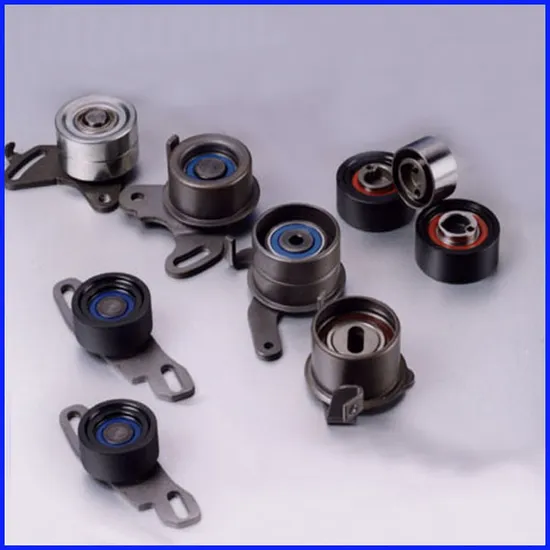

Five structure type as follows:

Nylon Pulley type;
Integrated type;
Steel Pulley with bracket type:
Steel Pulley Type;
Integrated with bracket type;

More timing belt tensioner bearings, pulley idler bearings, welcome to contact with us in details.
