Portable High Voltage FRP Telescopic Detector Electroscope

Product Description

Quick Details
Place of Origin: China Brand Name: XINCHENG
Product name: Fiberglass Telescopic Electroscope Voltage Electroscope Test Equipment
Application: Power system operation, Personnel protection Feature: insulation, telescopic, Rain Proof
Voltage: 0.1kv-10kv,400v, 6kv,10kv,35kv,66kv,110kv,220kv,500kv,750kv
Length: 0.95-8m Power supply: 9V stacked dry battery
Material: Light epoxy resion Accuracy: 0.5%
Certificate: ISO9001: 2008 Standard: IEC60529
Product Description
The High voltage electroscope is the necessary security tools for electric system and industrial and mining enterprise electricity work.It is used for testing 0.1 KV-750 KV lines or equipment whether running with power frequency voltage, ensure the personal safety of lineman
The characteristics of the high-pressure electroscope
By testing through the electroscope of stray capacitance of electric current, test equipment, the line is charged. The product of each part is firm and reliable connection, indicator seal in good condition, surface smooth, level off, the signs on the indicator are complete. Insulating rod clean, smooth surface. Easy to carry, check electrical high sensitivity, without strong electric field interference, a whole circuit self-checking function, long standby time, etc.
High-voltage electroscope is made of electronic integrated circuit and has stable and reliable performance. It has the characteristics of full circuit self-checking function and strong anti-interference. High voltage electroscope is suitable for 220V-500V, 6KV, 10KV, 35KV, 110KV, 220KV, 500KV AC transmission and distribution lines and equipment. It can serve you correctly and reliably in daytime or night, indoor substation or outdoor overhead lines. It is a necessary safety tool for electric power system and industrial and mining enterprises.
High Voltage Electroscope, integrated the advantages of various traditional electroscope. The lines and advanced and practical features. Field operation with acousto-optic alarm, safe and reliable. It can detect high voltage line and equipment Whether there is the power frequency voltage. It is used for testing 0.1 KV-750 KV lines or equipment whether running with power frequency voltage, ensure the personal safety.
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment. All products will 100% test before delivery to ensure the quality.
High voltage acousto-optic electroscope absorbed the advantage of traditional electroscope. Its circuit and function is advanced and practical. Equipped with acousto-optic alarm on site, safe and reliable. Use 4 pcs 1.5V button alkaline battery as power supply, working life is longer. Telescopic rod type of insulator is convenient to use.
Technology Parameters
Working condition: Temperature -20ºC- +40ºC; relative humidity: 85%
Power: frequency 50HZ AC circuit.
Application
High voltage fiberglass telescopic electroscope is used to detect high-voltage AC lines and equipment, whether there is power frequency voltage. It has sound and light warning, so it is safe and reliable. High voltage electroscope is the necessary security tools for electric system and industrial and mining enterprise electricity work. It is used for testing 0.1kV-750kV lines or equipment whether running with power frequency voltage, ensure the personal safety of lineman.
Characteristics:
1.Using epoxy resin as materials, so it is ultra light, ultra high voltage, high strength.
2. Applications: Used for testing the power frequency voltage on alternating high voltage line and electrical equipment. Function of audible and visual alarm on the safe side.
3. Specification: 0.1-10kv, 10kv, 35kv, 110kv, 220kv, 500kv, 750kv. We could produce them as your requirement.

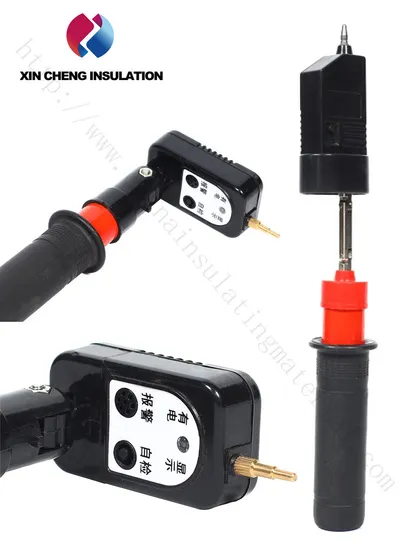

4. Multi-angle electroscope head: The head of pocket high-voltage electroscope can be folded, and the angle of the electroscope can be adjusted arbitrarily as required.
5. Expansion joint: According to the test distance, adjust the expansion bar.
6. Insulated rubber handle: Insulated rubber handle, safe to use.
7. Function of audible and visual alarm on the safe side
8. Necessary security tools for electric system and industrial and mining enterprise electricity work
9. Used for testing the power frequency voltage on alternating high voltage line and electrical equipment
10. Used for testing lines or equipment whether running with power frequency voltage, ensure the personal safety of lineman
Features
1. safe and reliable
2. high quality
3. Sound and light alarm
4. dual display
5. ensure work safety
6. Extension type, with fully self -check function.
7. Voice and light alarm reminder, stable and reliable.
8. Strong anti-interference ability.
9. High pressure electroscope
10. Stable performance
11. Easy to operate
12. Ultra-light, high strength
Data Sheet

Test Items	Unit	Voltage Class Test
		6 kV	10 kV	35 kV	110 kV	220 kV	500kV	750kV
Trigger Voltage	kV	<0.9	1.5~4.0	5.25~14	16.5~44.0	33.0~88.0	75~200	112.5~300
Leakage Current Test	µA	<500	<500	<500	<500	<500	<500	<500
Sound Intensity	dΒ	>70	>70	>70	>70	>70	>70	>70
Light Intensity	LX	50000	50000	50000	50000	50000	50000	50000
Voltage Test (DC kV)	kV	6	10	35	110	220	500	750
Temperature Test	°C	30	30	30	30	30	30	30
Moisture Test	%	95%	95%	95%	95%	95%	95%	95%
Lifetime Test	times	5000	5000	5000	5000	5000	5000	5000
Arc-resistance Test	kV	7.2	12	42	130	260	590	900
Induced Voltage Test	kV	0.9	1.5	5.25	16.5	33	75	112.5
Curvature	mm	140	140	140	192	295	500	600
Quiescent Current	µA	<0.03	<0.03	<0.03	<0.03	<0.03	<0.03	<0.03
Dynamic Current	µA	<15	<15	<15	<15	<15	<15	<15

Main technical parameters

Items	0.4KV	3-10KV	27.5KV	35KV	66KV	110KV	220KV	330KV	500KV
Retracted Lenght(mm)	170	450	1450	600	750	750	850	1450	1750
Extended Length(mm)	900	1000	6000	1500	2000	2000	3000	6000	7200
Effective Insulated Length (mm)	700	700	4200	1100	1440	1440	2440	5200	6000
Handle Length(mm)	100	130	800	200	400	400	500	800	1200
Sections of Telescopic Insulated Stick	7	4	5	4	4	4	5	5	6

Direction for use
Usage and Notes:
1, To choose suitable electroscope according to the rated voltage.
2, Electricity testing operation shall comply with the relevant regulation of electrical safety working rule.
3, Press the self-inspection button before electricity testing, the electroscope should send out continuous sound and light signals. If no signals, it is prohibited to use it to operate.
4, When using the electroscope, the operators must grip the handle, completely pull out and fix the operating rod.
Voltage Detector is a high voltage detect tool, which is composed of signal device and insulated rod. A mask integrated circuit is used inside the signal device.
During voltage detecting, the voltage signal enters the integrated circuit in the signal device, and the integrated circuit processes the voltage signal into electrical signals, and then starts voice circuit and light indication.
500kV Voltage detector is contact electroscope, automatic detection whether electrified body is electriferous or not. When the measured voltage is higher than the trigger voltage of electroscope, signal device will start the voice circuit and send out the language. At the same time, there is a light indication at the bottom of the signal device.
The insulation rod conforms to the IEC/IC78 standard, and has the characteristics of moisture resistance, high temperature resistance, shock resistance, bending resistance and high insulation. The material characteristics and withstand voltage of insulated rod are shown in Table 1 and 2.
Table 1: Material characteristics of insulating rod

Item	Unit	Index
Heat resistance is not less than	ºC	200
Impact resistance (longitudinal) is no less than	mpa/cm	147
Bending strength (vertical) is no less than	mpa	343
Surface resistance coefficient (after soaking) is not less than	Ω	10×10¹¹
Volume resistance coefficient (normal state) is not less than	Ω/cm	10×10³¹

Table 2: Withstand voltage of insulating rod

Rate voltage of insulating rod (kV)	10	35	110	220	330	400	500
Withstand voltage (kV)	45	95	220	440	380	460	580
Detecting length (m)	0.7	0.9	1.0	1.8	2.8	3.3	3.7

FAQ
Q : What kind of payment do you accept ? Can I pay RMB ?
A : We accept T/T(Wire transfer),Western Union, Paypal, Credit Card and Alipay. Please be sure that we can receive the same amount of the Invoice. And you can pay money In RMB. No problem."
Q : What about your delivery time?
A : We have a lot of products in stock.We can send the stock products in about 4 work days.
If without stock,or stock is not enough, we will check the delivery time with you."
Q : How to ship my order ? Is it safe?
A : For small package, we will send it by Express, such as DHL, FedEx, UPS, TNT, EMS. That's a Door to Door service.
For big packages, we will send them by Air or By sea. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.
Q : Can you provide Certificate of Origin?
A : Yes,Sure.We can offer it. And it's free.
Q: Can you make new mold if needed?
A: Yes we are open to new models. Our technician is very experienced and we have built long term business relationship with several excellent mould factories. Please talk to our sales team for details.
Q: Do you provide free samples for quality check before placing the order?
A: We charge sample fees accordingly but the expense is always RETURNABLE as long as you place the order. If you are a returned customer, we would be very happy to provide some free samples at your request but the freight will still be at your cost. In general, We will prepare and send the samples within three days with tracking numbers.
Q: How do you control the quality of your products?
A: 1.We have quality inspectors to walk around and inspect to ensure the quality of the products from the very beginning to the very end of the production process.
2.Third party inspection is welcomed before the cartons are sealed and loaded. Please contact your exclusive sales engineer for the discussion of details.
Packing and shipping: High quality bubble wrap and carton,
Suitable packing for export: Cartons+ Wooden cases+ Pallets+ Wrapping Film Suitable packing material ( Non fumigaion ) and beautiful package workmanship which will well protect
the goods and avoid any trouble when you pick up the goods from the local custom
Port: Tianjin/Qingdao or other port in China
