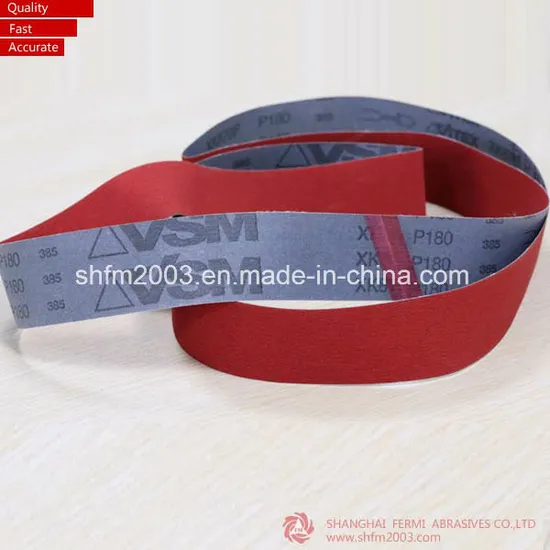

Abrasive Belt | |||
Materials | Grit No. | Belt size | Application |
Alumina oxide | 36-400# | Wide: 3-120mm Length: 305-820mm | metal with low or middle load, rubber and other synthetic material |
Silicon Carbide | 40-400# | brass, bronze, titanium alloy, aluminium alloy, glass, ceramic, china, mineral, MDF wood, stone, rubber and other synthetic material. | |
Zirconia Alumina (Domestic and imported abrasives cloth materials) | 36-320# | middle or heavy load grinding, steel, alloy-steel, cast iron and nonferrous metal. | |
Alumina oxide -Compactgrain (imported materials) | 80-1200# | High-tech and long life abrasive materials, good self-sharpening, impressively consistent finish, used for wet and dry application: high-alloyed steel, chrome and chrome-nickel steel | |
Ceramic (imported materials) | 80-1200# | High-tech and long life products, Suitable for chromium steel, chrome-nickel steel, stainless steel, high-alloy steel, nickel base alloy, titanium steel, brass, bronze and etc. | |
Note: Special belt size can be customized according to requests. | |||
| Typical products(ceramic) | ||
| PART NO. | SIZE(mm) | GRIT |
| 200 201 | 3x305 | 60 |
| 200 202 | 3x305 | 80 |
| 200 203 | 3x305 | 120 |
| 200 204 | 6x305 | 60 |
| 200 205 | 6x305 | 80 |
| 200 206 | 6x305 | 120 |
| 200 207 | 3x520 | 60 |
| 200 208 | 3x520 | 80 |
| 200 209 | 3x520 | 120 |
| 200 210 | 6x520 | 60 |
| 200 211 | 6x520 | 80 |
| 200 212 | 6x520 | 120 |
