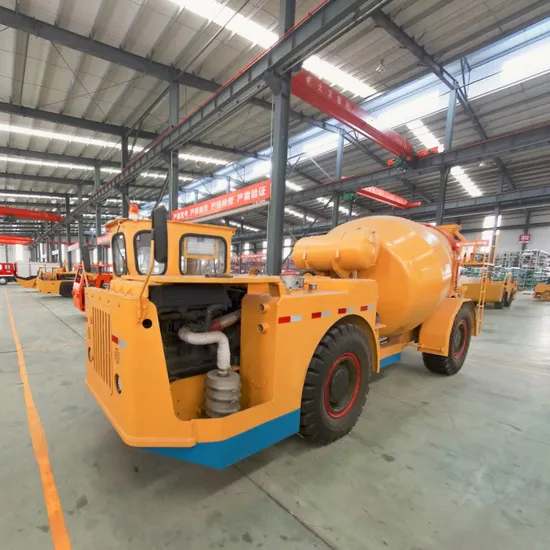

UCM-410 4cbm underground cement concrete mixer truck with Deutz engine

Product Description

Product Description
Structural Design
Frame bodies are articulated with 40 ºsteering angle for both sides.
Ergonomics Canopy with comfortable operation.
Fully closed cab with air conditioning.
. Rear camera to provide good view when reversing or backward operation.
Combination design of parking brake & working brake ensure good braking performance.
SAHR(spring applied hydraulic release) braking model.
Safety
Automatic alarm system for oil temperature, oil pressure and electrical system.
Reverse alarm.
Beacon light
Energy-saving & Environment friendly
Germany DEUTZ engine, powerful and low-consumption.
Catalytic purifier with muffler

Main Parameter
Engine	DEUTZ BF6L914
Transmission	DANA 1201FT20321
Axle	DANA 112
Overall Size	7150mm*2240mm*2600mm
Min Ground Clearance	320mm
Operation Weight	9500kg
Tire size	10.00-24 Nylon
Travel Speed
1st Gear	4.9km/h
2nd Gear	12.7 km/h
3rd Gear	26 km/h
Turning Radius
Inside	3670mm
Out	6280mm
Mixer Tank(Drum) Parameters
Concrete Volume	4m3
Plate thickness	5mm
Revolution	0-16rpm

Company Profile
Qixia Dali Mining Machinery Co., Ltd was established in 1998, located in Yantai City. The factory covers an area of 130, 000 square meters. The total number of employees is more than 200, of which 90 are technicians and engineers. The company is mainly engaged in the design, development, production, installation, and training of underground mine equipment and ore processing equipment, spare parts supply, and sales. Our company mainly produces underground equipment, such as scooptram, mining truck, mine locomotive, mobile rock splitter, scaler, etc. With 20 years of research and experiments, our equipment has been large-scale and intelligent and can achieve remote control. The main underground equipment has passed the national mine product quality and safety certification. In addition, our company can also provide EPCM services for all kinds of non-ferrous metal, ferrous metal, and non-metallic mines. Up to now, our equipment has been exported to more than 80 countries in the world, serving hundreds of mining projects. As a key government-supported enterprise, the company has been awarded "Specialized New Enterprises" and "High-tech Enterprises" in Shandong Province. Over the years, we adhere to the principle of customer first, strive for excellence, and wholeheartedly provide customers with high-quality equipment and service.
FAQ
1. Are you a factory or trade company?
We are a manufacturer, we also supply trade service.
2. Will you provide some wearing parts of the machines?
Yes, of course. We ship them with the machine and spare parts in wooden boxes.
3. How is the quality of your products?
We have been approved by ISO and CE, and always produce our products strictly according to national and international standards. We do strict inspections in every production stage, and all the machines we sell are under warranty.
4. What about your price?
We always supply our products at a reasonable price to build long-term business and earn a good reputation.
5. What payments term do you accept?
We accept L/C, T/T, and other ways like D/A and D/P, etc, T/T goes with 30% advanced payment after signing the contract or order confirmation.
6. What about the order lead time?
We have two factories and big productivity, the order lead time is only 15-20 days.

---
