China Manufacturer Sanding and Edge Down Carving CNC Router Machine

Product Description

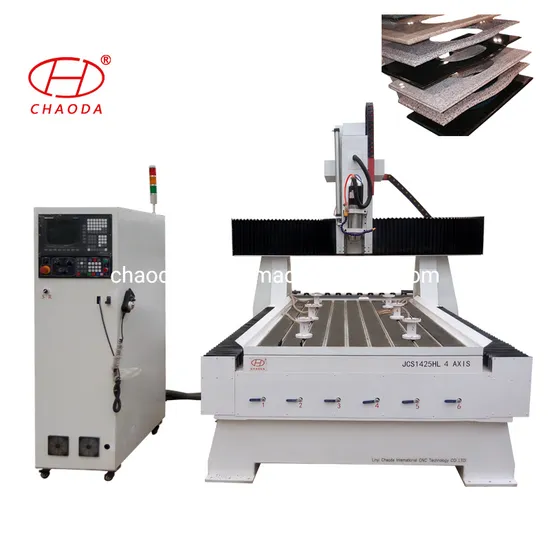

China manufacturer sanding and edge down carving cnc router machine
Technical Features:
All machine parts adopted top quality from all over the world,to make machine with high performance and durability. heavy duty Steel T-extrusion, keep machine with good stability. spindle of the machine rotate 0-180 degree,can make engraving on different angles,like arc-surface milling,bending surface machining. machine can process countertops, make cutting and polishing on edges of marble adopt Ncstudio high version control system, more stable and easy to operate. all dust cover,dust proof.
Application Materials:

2D engraving, 3D engraving, line engraving, cutting, edge inversing, drilling on
Artificial stone, Marble, Granite, Ceramic Tile, Tombstone, milestone, Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Slate, grindstone ,Jade, crystal, glass, plexiglass, wood, pvc, eps foam, aluminum composite panel, aluminum block, copper and so on.

Model	JCS1425HL
X, Y, Z, B working area	1400*2500*500mm* 180degree
Lathe bed structure	Heavy duty Steel T-extrusion
Table surface	T-slot with clamps, with vacuum cups, with water tank
X Y structure	Helical Rack and pinion, linear square rail
Z structure	Taiwan Ball screw, Taiwan linear square rail
Spindle	7.5kw HQD water cooling spindle
Spindle speed	0-12000 RPM
Tool magazine	Linear type automatic tool changer, 8 tools ability
Working mode	Japan YASKAWA servo motor and driver
Operating system	4 axis Ncstudio NK300 with handwheel
Option configurations	Automatic tool changer(included) Suction cups(included) Rotary device Saw blade unit

Optional configurations:
Relative Product:
Client Feedback:
Packaging & Shipping:
Contact Ways:
FAQ
Q1.How do you get the bestprice?
As you may know,the different type of CNC machine apply to the different material,and the different model apply to the different material.
Please tell me what's material you want to cutting or engraving ?
And what's MAX size of carved material ?

Then I will recommend the most suitable model and the best price for you.

Q2.In case of failure,how to do?
Call us----our engineers are online for 24-hours,and ready to serve you.
Replacement of damaged parts for free---For more information,please contact us
The CD and operation manual----It show the most common failure in working processing and how to solve this problems.
IF YOU ARE INTERESTED IN THIS MACHINE, PLS CONTACT WITH US IN ANY TIME, THANKS
Q3.Training and Use?
We will supply friendly English operation manual and installation. Customer is warmly welcomed to visit our factory for free training. We can also send engineer to customer's country to supply training.

Q4. Guarantee & After-sale Service?
We supply one year warranty under normal use and lifetime technical support . We can provide engineers overseas training.

Q5. Payment Terms?
T/T in advance and ****** Trade Assurance.

Q6.Documents after shipment?
We will send original documents to you by DHL, including Packing List, Commercial Invoice, Sales Confirmation, Bill of Loading , and other certificates as required by customer.
If you have any other questions for CNC Router Machine,please feel free to contact us as below guide, you are always welcome!!

---
