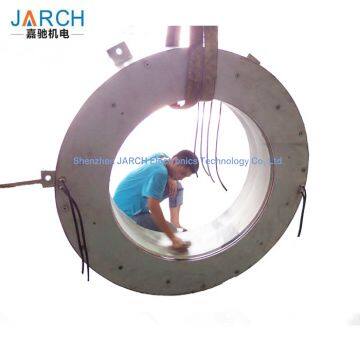

JARCH JARCH Through Hole Slip Ring 1000mm Industrial Slip Rings Large Bore electrical connectors
Product Description
Large Bore Slip Rings
A slip ring can be used in any electromechanical system that requires unrestrained, intermittent or continuous rotation while transferring power and / or data.
Large Bore slip rings is electric slip rings with lare bore size, up to 1000mm, Rion Electronic have the strong ability to build all types Large Bore Slip Rings, including bore size 300mm, 400mm, 500mm and so on.If you have any interest, pls request the solutions online or by Email as below:Contact us
Options(On your request)
Voltage/current, Rated Speed, Operating temperature, Number of circuits, Housing material and color, Outline dimension, Special lead wire, Lead exit location, Lead length, IP class, Terminal type,
JARCH Through Hole Slip Ring 1000mm Industrial Slip Rings
| Slip Rings Specifications |
| Housing Material | Aluminium Alloy/Stainless steal | Torque | 0.05N.m;+0.03N.m/6rings |
| Working life | >100 million revolutions | Contact material | Precious Metal:Gold-Gold |
| Electrical noise | Contact Resistance | | Dielectric strength | 1000VDC@50Hz | Lead Wire | UL Teflon® Awg22,Awg16,CAT6 |
| Insulation resistance | 1000MΩ@600VDC | Lead Lengths | 300mm(12") |
| Operating Temp. | -40°C to 80°C | Storage Temp. | -55°C to 85°C |
| Bearing. | Deep groove ball | Protection | IP54 (IP68 Optional) |
JARCH Through Hole Slip Ring 1000mm Industrial Slip Rings
Feature:
Bore size is up to 1000mm
Speed is only 10RPM
Long-distance transmission
Precision ball bearings for long life
Rugged anodized aluminum construction
Installation Instructions:Shaft/Flange Mounted
Dimension L To Be Advised When Ring And Current Details Are Options . Please Contact JARCH Technical Department,1000RPM M5 Connections Hybrid Slip Rings For Rotary Table or Industrial Machinery
Applications:
• Exhibit/display equipment
• Packaging / wrapping machinery
• Semiconductor handling systems
• Industrial machinery
• rotary index tables
• Process control equipment
• Heavy equipment turrets or cable reels
• Emergency lighting, robotics Palletizing machines, Option
• Medical equipment | rotary sensors, emergency lighting, robotics
• Miniature cable reels
JARCH Through Hole Slip Ring 1000mm Industrial Slip Rings
Related Products
Medical Equipment 65mm Through Bore Rotary Slip Ring 250 ~ 500RPM for Electric Pancake Slip Ring
Company Information
JARCH Company is a professional Slip Ring & Routry Joint manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
Blue Hybrid Slip Rings 2 ~ 36 Circuits / Sealed Air Rotary Joint With 5A Power
Medical Equipment 65mm Through Bore Rotary Slip Ring 250 ~ 500RPM for Electric Pancake Slip Rin
JARCH Through Hole Slip Ring 1000mm Industrial Slip Rings
Contact Us
Customized on your request
If you don't see what you want in this website,let us know; we may already have it designed or we will modify a design to meet your requirements. In many cases the specifications in the catalog can be changed to include bore size, circuits number, higher current/voltage,flange, lead wire length,shielding,connectors,higher speed,IP68,military grade,higher temperature, mixed with pneumatic/hydraulic capability. Please ask if you don't see exactly what you need as only a small fraction of our Rion slip rings are included in this catalog!
For a detailed outline drawing/3D modal files of a specific model number, or to request a quotation, please contact your local sales representative or send an email as below:
>>
