Semi Automatic Pet Stretch Blow Molding Machine

Product Description

Semi Automatic Pet Stretch Blow Molding Machine for 3liter PET bottles

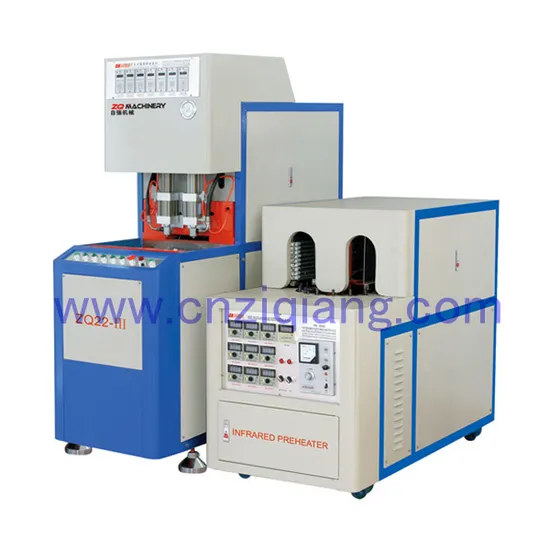

A. )ZQ22-III semi-automatic PET stretch blowing machine has been improved on the base of ZQ22-II, designed by CE standard. With microcomputer controlling system, it controls various technical parameter needed more accurately and more steadily. Only one person without special training operates it more easily and more safely. ZQ22-III is fit to blow carbonated beverage bottles, mineral water bottles, cosmetics bottles and hot-filling bottles.
B). ZQ22-III-D semi-automatic stretch blow molding machine has been improved on the base of ZQ22-III, designed by CE standard. With microcomputer controlling system, it controls various technical parameter needed more accurately and more steadily.
After improving technology, the PET bottles can resisted high temperature 98degree and solve the package of traditional food and drink. Only one person without special training operates it more easily and more safely.
ZQ22-III-D is fit to blow hot-filling bottles.
C). ZQ22-III-E semi-automatic stretch blow molding machine has been improved on the base of ZQ22-III, designed by CE standard. With microcomputer controlling system, it controls various technical parameter needed more accurately and more steadily.
After improving technology, the pp or bopp bottles can resisted high temperature 98 degree and solve the package of traditional food and drink. Only one person without special training operates it more easily and more safely.
ZQ22-III-E is fit to blow pp or bopp high temperature resistant bottles.
MAX. Volume for Product: 2L(2-cavity) 3L(1-cavity)
Semi Automatic PET Stretch Blow Molding Machine for 3liter PET bottles
Features:
1. Produce bottle from 2(2-cavity) 3(1-cavity)
2. Output capacity up to 900 for 0.6L using two-cavity blow mold
3. Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01second
4. Equipped with special designed air storage unit
5. Using Infrared preform heater
6. Independent Temperature Control for different heating lamp to get ideal preform heating results
7. Heating lamps are adjustable in directions to suit various preforms.
8. Operated only by one person without special training.
9. Simple installation & startup adjustment.
10. Waste rate of finished bottle is less than 0.2%.
Semi Automatic PET Stretch Blow Molding Machine,equipment information.

TYPE	ITEM	UNIT	TECH. DATA	TECH. DATA
			ZQ22-III	ZQ22-IV
Main Machine	Max.Volume of Product	L	2(2-cavity)	5(2-cavity)12(1-cavity)
	Output	pcs/h	450-1200	300-1200
	Neck Size of Product	mm	15-75	15-120
	Max Bottle Diamater	mm	105	---
	Useful Area of Mould	mm	350*450	350*450
	Mould Thickness	mm	120-170	120-200
	Mould Stroke	mm	170	220
	Clamping Force	KN	50	50
	Stretching Stroke	mm	360	360
	Working Pressure	Mpa	<=1.0	<=1.0
	Blowing Air Pressure	Mpa	<=4.0	<=4.0
	Power of Main Blower	KW	0.2	0.2
	Weight of Main Blower	Kg	700	800
	Measurement of Main Blower	mm	1520*580*1780	1700*580*1820
Preheater	Power of Preheater	KW	10	12
	Weight of Preheater	Kg	450	450
	Measurement of Preheater	mm	1450*700*1150	1450*700*1150

Note: The specifications are subject to change without notice for the further improvement.
!Note: Custom production accepted. Any client idea tried.

---
