Huawei Gpon Eg8141A5 Xpon Epon Gepon Xgpon Olt WiFi Ont 2 Port Pon Fibre Optic Modems New Modem Router WiFi FTTH ONU

Product Description

EG8141A5 FTTH is a routing-type ONT in the Huawei all-optical access solution with 1 GE port, 3 FE ports,1 POTS port and 1 2.4G WiFi port.

Model	LAN Port	Telephone	Wifi	PPPOE	Firmware
EG8141A5	1GE+3FE	1pots	yes	yes	English

EG8141A5 FTTH Product Overview EG8141A5 FTTH is a routing-type ONT in the Huawei all-optical access solution. It uses GPON technology to implement ultra-broadband access for users.
The high forwarding performance ensures the user experience of voice, data, and HD video services, and provides customers with an ideal all-optical access solution and future-oriented service support capability. EG8141A5 FTTH offers one GE port, one POTS port, three FE ports and supports 2.4G Wi-Fi. The ONT features high-performance forwarding capabilities to ensure excellent experiences with VoIP, Internet, and HD video services. These features make the EG8141A5 a perfect choice for broadband access.

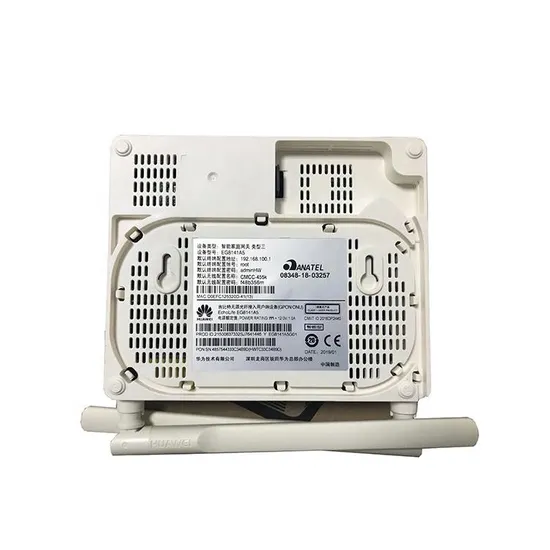

EG8141A5 FTTH Product Picture
EG8141A5 FTTH Product Specifications

Model	EG8141A5
Dimensions (L x W x H)	30 mm x 152 mm x 105 mm (without external antenna and pads)
Weight	< 180 g
Operating Temperature	0°C to +40°C
Operating Humidity	5% RH to 95% RH (non-condensing)
Power Adapter Input	100V to 240V AC, 50/60 Hz
System Power Supply	11V to 14V DC, 1.5A
Static Power Consumption	3.1W
Maximum Power Consumption	7.15W
NNI	GPON
UNI	1 POTS + 1 GE + 3 FE + 2.4G Wi-Fi
Optical Connector	SC/APC
Indicators	POWER/PON/LOS/LAN/TEL/WLAN/WPS

EG8141A5 FTTH Product Features GPON Port
Class B+ Receiver sensitivity: -27 dBm Overload optical power: -8 dBm Wavelengths: US 1310 nm, DS 1490 nm Wavelength blocking filter (WBF) of G.984.5 Flexible mapping between GEM Port and TCONT GPON: consistent with the SN or password authentication defined in G.984.3 Bi-directional FEC SR-DBA and NSR-DBA Type B (single-homing & dual-homing) Ethernet Port
Ethernet port-based VLAN tags and tag removal 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission QinQ VLAN Limit on the number of learned MAC addresses MAC address learning GE: Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s FE: Auto-adaptive 10 Mbit/s, 100 Mbit/s POTS Port
Maximum REN: 4 711A/μ, G.729a/b, and G.722 encoding/decoding 30/T.38/G.711 fax mode DTMF Emergency calls (with the SIP protocol) EG8141A5 FTTH and More Models

Bridge ONT	FE	GE	POTS	WiFi	USB	CATV
EG8010H	-	1	-	-	-	-
EG8040H	-	4	-	-	-	-
EG8240H	-	4	2	-	-	-
EG8242H	-	4	2	-	-	1
Gateway ONT
EG8120L	1	1	-	-	-	-
EG8045H	-	4	-	b / g / n	1	-
EG8245H	-	4	2	b / g / n	1	-
EG8141A5	3	1	1	a / b / g / n	1	-
EG8145V5	-	4	1	a / b / g / n / ac	1	-
HG8245D	-	4	2	a / b / g / n	1	-
EG8247H	-	4	2	b / g / n	1	1
HG8245Q	-	4	2	a / b / g / n / ac	2	-
PoE ONT	30W per port, 60 / 120W per system (4/8 port)
EG8040P	4		-	-	-	-
EG8080P	8		-	-	-	-
EG8240P	4		2	-	-	-
EG8280P	8		2	-	-	-
10G XPON ONT	10GE	GE	POTS	WiFi	USB
HN8245Q	-	4	2	a / b / g / n / ac	2
HN8055Q	1	4	2	a / b / g / n / ac	2

---
