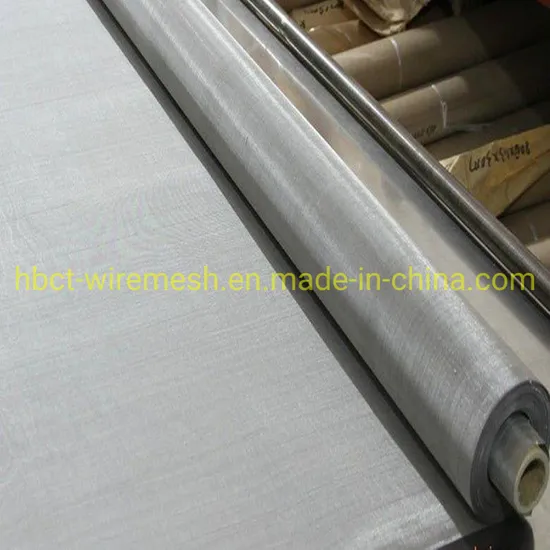

Stainless Steel 304 316 L Wire Screen Filter Mesh/Stainless Woven Wire Mesh

Product Description

Stainless Steel 304 316 L Wire Screen Filter Mesh/Stainless Woven Wire Mesh
Material: SS304 316 304L 316L Mesh count: 60mesh to 300mesh Width: 3', 1m, 4', 5', 6', or make as your request Length: Standard 30m, or make as your request Weaving type: plain weave 1. Product description Stainless steel mesh is wire mesh, which is produced using weaving technology specially adapted to the material. The wires used can have a diameter of 12 µm to 7 mm, depending on the stainless steel alloy.
In industry, stainless steel mesh is mainly used in filtration and separation technology.
The stainless steel alloys used are crucial in determining the fields of use in terms of corrosion, temperatures and strengths. The currently available materials made of stainless steel and its alloys can be used in extremely corrosive environments as well as in applications exposed to very high temperatures. 2. Specifications Most of the below mesh sizes are in stock, with common material SS304 and SS316.
Plain weave: 2X2mesh to 635X635 mesh;
Twill weave: 20X20mesh to 400X400mesh;
Plain Dutch weave: 10X64mesh to 80X700mesh;
Twill Dutch weave: 20X250mesh to 400X2800mesh;
Reversed Dutch weave: 48X10mesh to 720X150mesh.

Normal Specification Maishi Plain Weave Stainless Steel Woven Wire Mesh
Mesh/inch	Wire diameter (mm)	Aperture (mm)	--	Mesh/inch	Wire diameter (mm)	Aperture (mm)
2mesh	1.80	10.90		60mesh	0.15	0.273
3mesh	1.60	6.866		70mesh	0.14	0.223
4mesh	1.20	5.15		80mesh	0.12	0.198
5mesh	0.91	4.17		90mesh	0.11	0.172
6mesh	0.80	3.433		100mesh	0.10	0.154
8mesh	0.60	2.575		120mesh	0.08	0.132
10mesh	0.55	1.990		140mesh	0.07	0.111
12mesh	0.50	1.616		150mesh	0.065	0.104
14mesh	0.45	1.362		160mesh	0.065	0.094
16mesh	0.40	1.188		180mesh	0.053	0.088
18mesh	0.35	1.060		200mesh	0.053	0.074
20mesh	0.30	0.970		250mesh	0.04	0.061
26mesh	0.28	0.696		300mesh	0.035	0.049
30mesh	0.25	0.596		325mesh	0.03	0.048
40mesh	0.21	0.425		350mesh	0.03	0.042
50mesh	0.19	0.318		500mesh	0.025	0.0385

---
