US$1,000.00-1,100.00
|
1 Set
(MOQ)
|
Basic Info.
Wire Range for Copper
3mm~9mm
Wire Range for All
3mm~12.50mm
Application
Wire & Cable Field
Transport Package
Wooden Cases
Specification
(L x W x H) 280 x 184x 281mm
Production Capacity
100 Sets/Months
Product Description
Product Description Product usage: Used for cold welding of copper, aluminum, gold, silver, nickel, platinum, zinc, tin, tantalum niobium and other non-ferrous metals and some of their alloy wires.
Wleding ranges of all our cold welders / wire cold welding machines:
Product Parameters
| NO. | Description
| Welding Range |

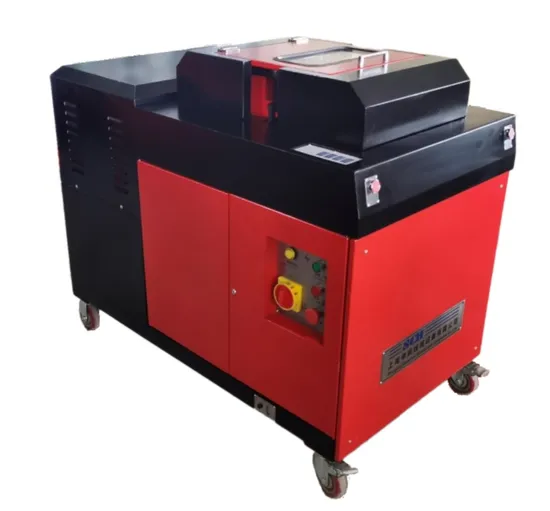

| 1 | AC1510-B Hydraulic
Cold welding machine | Cu: 3.00-9.00mm
Al: 3.00-12.50mm
Al Alloy: Φ3.00mm~Φ8.00mm |
| 2 | Frame type | Precise casting |
| 3 | Electrical power | 2.2 KW |
| 4 | Adjust Mode | Contactless |
| 5 | Control Method | PLC |
| 6 | Rated voltage | 380V / 50 HZ |
| 7 | Work pressure | 4.0~5.5MPa |
| 8 | Dimensions | (L x W x H)1300×730×1200mm |
| 9 | Weight | 670kg |
| NO. | Description of Goods
| Welding Range | Body |
| 1 | CH-30 cold welder | Cu: 0.90-3.25mm,
Al: 0.90-4.50mm | Precision casting;
Long service life, delivered a support stand for free |
| 2 | CH-35 cold welder | Cu: Φ0 .80mm~Φ4 .00mm
Al: Φ0 .80mm~Φ5 .00mm | |
| 3 | single hole die SM-3 | Customer's devided | |
| 4 | Dimensions | L280XW184XH281mm | |
| 5 | Weight | 32 kgs | |
Detailed Photos
Certifications
Packaging & Shipping
>>
