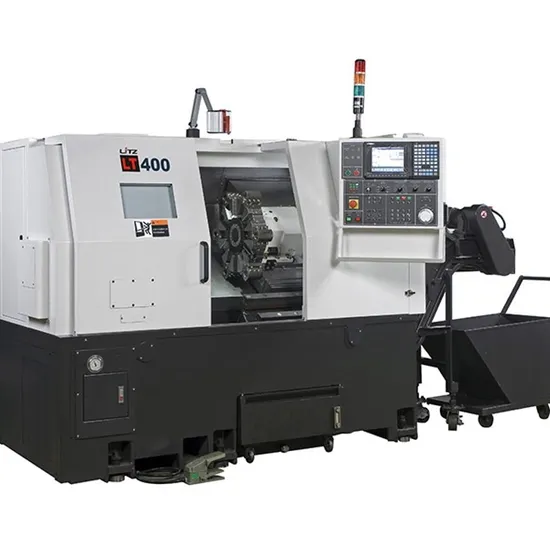

Lt400 Cheap Low Cost High-Performance Large CNC Vertical 5-Axis Care Mill Turn Metal/Plastic Machining Router Cutting Turning Tapping Drilling Milling Lathe

Product Description

Cheap Low Cost High-Performance Large CNC Vertical 5-Axis Care Mill Turn Metal/Plastic Machining Router Cutting Turning Tapping Drilling Milling Lathe For Sale

		LT-400
Travel
X-axis	mm	180
Z-axis	mm	530
Spindle
Spindle speed	RPM	30-4000
Spin de nose		A2-6
Front bearing inner dia.	mm	100
Thru-hole dia.	mm	63
Capacity
Chuck size		8"
Swing over bed	mm	400
Swing over slide	mm	320
Center distance	mm	645
Standard turning dia.	mm	216
Max turning dia.	mm	320
Max turning length	mm	530
Bar capacity	mm	52
Turret
No.of station		12-STATION
Sizeof holder(sq)	mm	25
Boring hoder dia.	mm	40
Tailstock
Travel	mm	435
Quill stroke	mm	100
Size of taper		MT5
Quill I.D.	mm	90
Feedrate
X-rapid	M/min	20
Z-rapid	M/min	24
Motor
Spin de motor	kw	7.5/11
X-servo motor	kw	1.5
Z-servo motor	kw	3.0
Turret servo motor	kw	1.5
Controller
Fanuc		0iMATE-TC
Machine size
Weight	kg	4300
Width	mm	2250
Height	mm	1770
Depth	mm	1670

Company Profile
Suzhou Wugan Intelligent Equipment Co., Ltd. Specialises in the production of high-performance CNC lathes and high-performance CNC turning centres, which are designed on the basis of the latest international lathe technology. Based on the latest international lathe cutting-edge technology as the basis of design, combined with high rigidity, high precision, high productivity and exquisite appearance and other characteristics, to provide customers with efficient and reliable cutting performance. In order to meet the higher requirements of customers, the company also has a high-performance mill-turn combined model available for use, which can be turned, milled and drilled in the same machine, and other combined processing functions, which not only increases the output capacity of the product, but also makes this series of lathes can easily meet the various processing needs of different customers.

---
