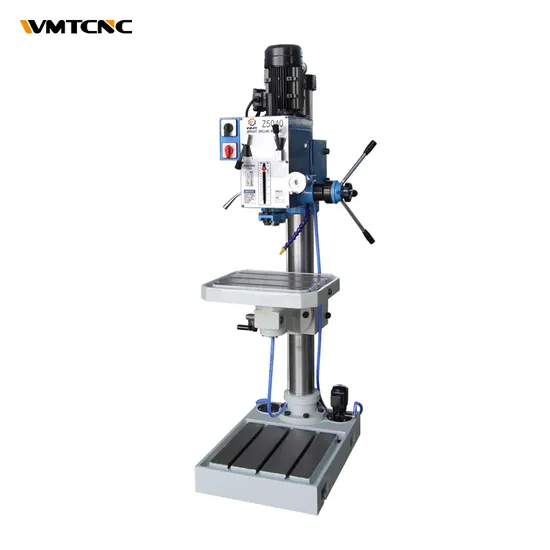

Z5040 hot sale vertical drilling machine from China

Product Description

Product Description
Main features:
(1)Drilling, milling and tapping;
(2) Head swivels 360 degree horizontally;
(3) Headstock and Worktable up & down perpendicularly;
(4) Super high column;
(5) Precision micro feed;
(6) Positive spindle lock;
(7) Distinct auto device for releasing tools, operate easily;
(8) Geared drive, lower noise;
(9) Spindle Auto-feeding.
Main Specification:

Specification	Z5032/1 Z5040/1 Z5045/1	Z5032C Z5040 Z5045
Max.drilling capacity	Φ32mm/Φ40mm/Φ45mm
Spindle taper	MT3/MT4/R8
Spindle travel	Φ130mm
Step of spindle speed	6 steps
Range of spindle speed 50Hz	80-1250rpm
60Hz	95-1500rpm
Step of spindle auto-feeding	6 steps	/
Range of spindle auto-feeding amount	0.06-0.30rpm	/
Min.distance from spindle axis to column	290mm
Max.distance from spindle nose to worktable	725mm	700mm
Max.distance from spindle nose to stand table	1125mm
Max.travel of headstock	Φ250mm
Swivel angle of headstock(horizontal/vertical)	360°
Max.travel of worktable bracket	Φ600mm
Worktable size of avaliablity	380×300mm	730×210mm
Swivel angle of table horizontally	360°
Table leaned	/	±45°
Size of stand worktable of avaliability	417×416mm
Motor Power	1.5kw
Speed of motor	1400rpm	1400rpm
N.W/G.W	440/490kgs	470/530kgs
Packing size	1850×750×1000mm	1850×950×1000mm
Loading amount/20" container	18pcs	12pcs

Detailed Photos
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What's the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
