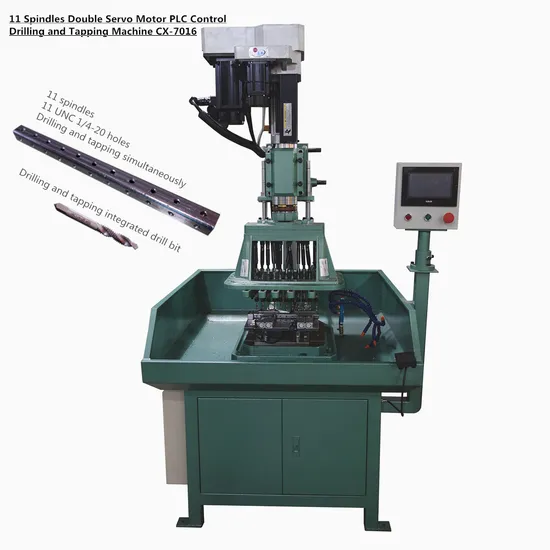

Automatic Multi Spindle Drilling Tapping Machine for Mass Production

Product Description

Product Description
Double servo motor type drilling tapping machine automatic for stamping punching diecasting metal parts
Chansin double servo type drilling tapping machine uses a double servo motor machine head, which is light in weight and can be easily converted by drilling and tapping function. , manual feeding or vibrating bowl feeding, automatic water cooling system , automatic slags discharge, PLC control makes operation more convenient and simple.
* PLC control* Manual or automatic feeding* Drilling /tapping holes automatically* Customized clamp fixture
Product Parameters

Drilling Range	φ1-φ18mm
Tapping Range	M2-M22
Spindle sleeve diameter	φ70mm
Spindle Travel	75mm
Spindle center to column	325mm
Spindle center to column	120-420mm
Spindle Tapper	JT6/ER40
Spindle rotation speed	0-1500rpm
Host up down moving range	0-420mm
Feed Motor Power	0.75kw /1.0kw
Spindle Motor Power	1.8kw/2.3kw/3.0kw
Electricity	50HZ 3 phase
Net weight	400KG
Gross Weight	500KG
Packing Size	128cm*105cm*220cm

Detailed Photos
Double servo motor type drilling tapping head CXSF-74 Spindle Motor: 1.8kw/2.3kw/3.0kw
Feed Motor: 0.75kw/1.0kw
Servo motor drive: Xinje brand
Customized vibrating bowl with feeding channel Low noise, high performance
Customized fixtures
* Customized clamping fixtures with pneumatic system for drilling /tapping continuously .
Electri box
* Xinje PLC/Mitsubishi PLC * Xinje servo drive
HMI control pannel with color touch screen

Brand: Xinje
Success Case
FAQ
1. Are you a manufacturer or trade company? -- Manufacturer
2. What is payment terms? -- 30% -50% deposit, the balance will be paid before delivery
3. What is the warranty time ? -- One year warranty and life time maintenance.
4. Do you provide OEM service?-- Yes
5. Can you send engineers to serve overseas ? -- Yes, You are responsible for round-trip air tickets and accommodation of our engineers.
6. What is the loading port ? -- Shenzhen / Guangzhou port

---
