2022 New PC Polycarbonate Solid Compact Sheet Crystal Sheet Embossed Sheet Extrusion Line

Product Description

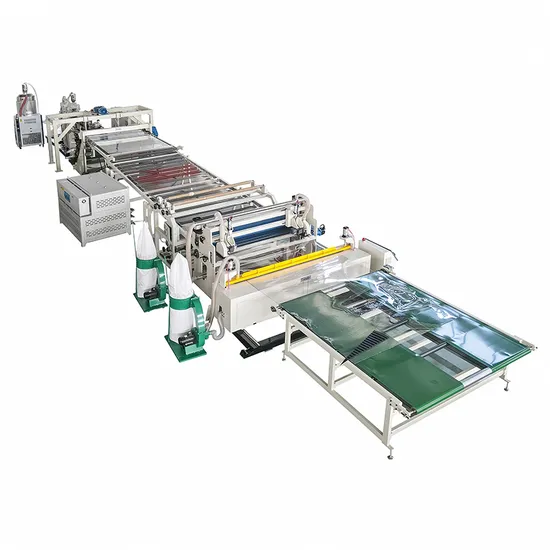

Colored Polycarbonate Solid Sheet PC Embossed Sheet Crystal and Prismatic Sheet Extrusion Line
This machine is specially used to produce the polycarbonate universal solid sheets, which is as clear as glass, but the density of PC is only half of glass. And the PC solid sheet is with high impact resistance, which is also called " Unbreakable glass" . By changing the three rollers calendars, this line can also produce frosted solid sheets, diffusion solid sheets, embossed solid sheets and anti-scratch solid sheet etc for different applications.
PART 1 SOLID SHEET SPECIFICATIONS:
1) Thickness: 1.8mm-16mm
2) Width range: <= 2,100mm
3) Length: Any dimension.
4) Color: Clear, blue, green, opal, brown, blue green etc.
5) Texture: plain, crystal, prismatic, raindrop, oranges patterns, diamond sheets etc,

PART 2 SOLID SHEET APPLICATIONS:
PC solid sheet is easy to be shaped with cold bending, equipment and heat synthesis processing accordingly, which used
widely in all kinds of architecture, engineering and decoration etc.
1) Lighting Roofing
2) Advertisement light box
3) Carport and awnings.
4) Sound barrier
5) Protective & Police device
6) Indoor partition
7) Indoor ceiling etc

PART 3 MACHINE SPECIFICATIONS:

THIS MACHINE MAINLY CONSISTS OF:
1	Dehumidifying and drying system		1 set
2	Automatic vacuum feeding machine		1 set
3	SJ-130/35 Single screw extruder for PC		1 set
4	Hydraulic screen exchanger for PC		1 set
5	Melting gear pump for PC		1 set
6	SJ-45/30 Single screw co-extruder for UV layer on both sides		1 set
7	Melting gear pump for UV		1 set
8	T-type die head(2300mm width)		1 set
9	Three-roller calendars with 45 degree angle installation		1 set
10	Rollers thermo-controlling machine		1 set
11	Protective film coating unit		1 set
12	Cooling frame & edge cutting device		1 set
13	Haul-off machine with double rollers		1 set
14	Saw cutting machine		1 set
15	Belts conveying table		1 set
16	Sheet stacker		1 set
17	Electrical cabinet		1 set
18	Spare parts		1 set

COMPANY INFORMATION AND CERTIFICATIONS:
DELIVERY AND PACKAGING:
OVERSEA TRADE SHOWS:
CONTACT DETAILS:
PART 5 OTHER KINDS OF PLASTIC SHEET EXTRUSION MACHNE RECOMMANDATION:
1. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.15-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 350-650kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.
2. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.
3. ABS/HIPS sheet extrusion machine:
Processong material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 600-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.
4. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 600-800kg/h
Application: Vacuum forming, bathtube, etc.
5. PE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 500kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.
6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 400-600kg/h
Application: Ads., decoration, roofing, etc.
7. PC/PP/PE hollow profile sheet/ sunshine roofing panel machine:
Processing material: PC/PP/PE virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity: 400-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.
8. PVC sheet/edge banding sheet/marble sheet machine:
Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 300kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.
9. EVA car interior decoration sheet extrusion line
Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer strcuture: single layer
Capacity: 700-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior and exterior decoration parts etc.
CONTACT INFORMATION: Ms Lilly Zhou

---
