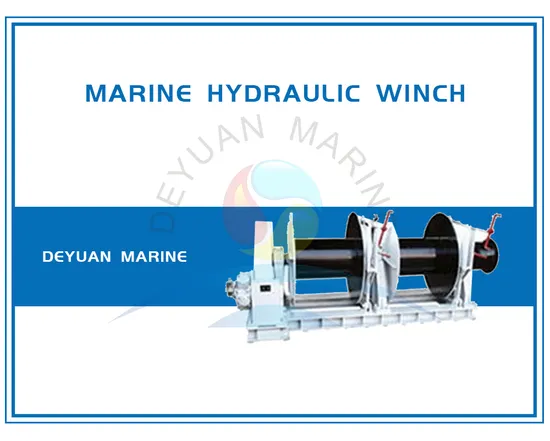

One Drum Type Hydraulic Small Mooring Winch for Boat

Product Description

One Drum Type Hydraulic Single Mooring Winch
Hydraulic Marine Mooring Winch:
Mooring winch is an important winch nearly use on all kinds of boat, it is just like anchor windlass, when ship's berth at port, emergency berting or when tug boat have drag mission mooring winch will be use. From above information you can see the mooring winch is using between ships and platform when ship berthing.

Hydraulic Single Mooring Winch (One Drum)
Model	Hawser Drum			Motor Power
	Load	Speed	Rope Size
	(kN)	(m/min)	(mm×m)	(kW)
YB1F30	30	15	50×150	18.5
YB1F40	40	15	50×150	18.5
YB1F50	50	15	60×150	22
YB1F60	60	15	70×160	30
YB1F70	70	15	70×160	30
YB1F80	80	15	80×180	37
YB1F100	100	15	80×180	37
YB1F125	125	15	80×200	55
YB1F150	150	15	80×200	75
YB1F200	200	15	100×220	90
YB1F250	250	15	100×220	110

Quality assurance and service
1. Complete and strict management, production and inspection procedures are in place to control quality and avoid errors in details
2. Design and production capability
3. Strict inspection, including incoming material inspection, packaging, etc.
4. Advanced factory equipment is guaranteed
5. Reply to design or effective solutions provided by our engineers or technical support within 24 hours during the working day.
6. Can provide professional customized services according to customer requirements
7. Timely delivery, because we have strict production planning and professional tracking process
8. Affordable price and professional service
If you are interested in our products or have any questions, please feel free to contact us for more details.
Deyuan Marine has been waiting for your contact.

---
