Paper Bobbin C Glass Yarn for Fiberglass Mesh

Product Description

Introduction:
Fiberglass yarns consist of a defined number of E-Glass filaments of a certain nominal diameter, brought together to form a yarn. The structure of the yarn is fixed and protected by a size and a slight twist, generally in Z-direction.

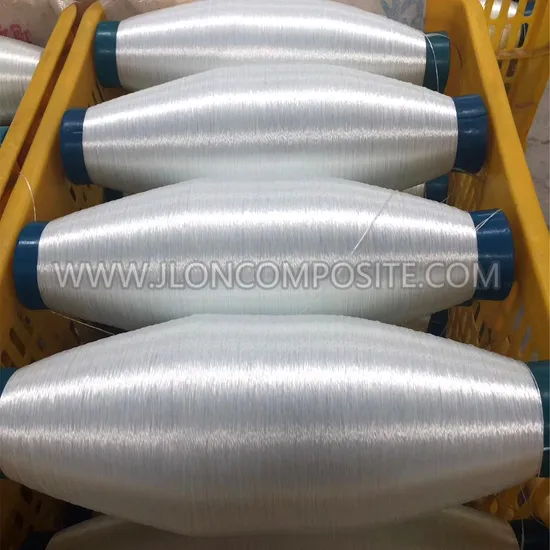

Our E-Glass fiberglass yarns are wound on hard paper/plastic bobbins and supplied in a "milk bottle" shape.The glass yarns can be also supplied on beams. The glass composition meets the certification for E-Glass as defined by ASTM's D578-00 Standard Specification for fiberglass filaments.
Application:
For composite industries and electronic industries.
Specifications:

Metric	English	Sizing	Density	Bobbin	Legnth	Net weight
			Tex		m	kg
EC5 5x1x2S168	EC D450 1/2 4.2S	Y5	22.4	4K	166000	3.72
EC6 33x1x2S112	EC DE150 1/2 2.8S	Y5.S508	66	4K	60000	3.96
EC6 68x1x2S112	EC DE75 1/2 2.8S	Y5.S508	137.4	4K	26700	3.67
EC6 75x1x2S112	EC DE67 1/2 2.8S	R126	150	4K	24200	3.63
EC7 22x1x2S112	EC DE225 1/2 2.8S	Y5	45	4K	62000	2.79
EC9 33x1x2S112	EC G150 1/2 2.8Z	Y1	66	4K	60000	3.96
EC9 68x1x2S112	EC G75 1/2 2.8Z	Y1.S508	137.4	4K/8K	26700/62000	3.67/8.52
EC9 136x1x2S112	EC G37 1/2 2.8Z	Y1	272	4K	13500	3.67
EC9 136x1x3S112	EC G37 1/3 2.8Z	Y1	408	4K	9000	3.67
EC9 136x1x4S112	EC G37 1/4 2.8Z	Y1	544	4K	6750	3.67
EC9 136x1x5S112	EC G37 1/5 2.8Z	Y1	680	4K	5400	3.67
EC9 136x1x6S112	EC G37 1/6 2.8Z	Y1	816	4K	4500	3.67

Metric	English	Sizing	Density	Bobbin	Legnth	Net weight
			Tex		m	kg
EC5 11 Z40	EC D450 1/0 1.0Z	Y5	11.2	2K	166000	1.86
EC6 33 Z28	EC DE150 1/0 0.7Z	Y5.S508	33	4K	12000	3.96
EC6 68 Z28	EC DE75 1/0 0.7Z	Y5.S508	68.7	4K/8K	53500/124000	3.67/8.52
EC6 75 Z28	EC DE67 1/0 0.7Z	Y5.S508.R126	75	4K/8K	48500	3.64
EC6 136 Z28	EC DE37 1/0 0.7Z	Y5.S508	136	4K/8K	27000/62000	3.67/8.43
EC7 22.5 Z40	EC E225 1/0 1.0Z	Y3.Y5	22.5	4K	125000	2.81
EC7 45 Z40	EC E110 1/0 1.0Z	Y3.Y5	45	4K	82000	3.69
EC9 33 Z28	EC G150 1/0 0.7Z	Y5.S508.R126	33	4K	124000	4.09
EC9 68 Z28	EC G75 1/0 0.7Z	Y5.S508.R126	68.7	4K/8K	53500/124000	3.67/8.52
EC9 75 Z28	EC G67 1/0 0.7Z	Y1	75	4K/8K	48500	3.64
EC9 110 Z28	EC G45 1/0 0.7Z	Y1.R	110	4K/8K	34000/74000	3.74/8.14
EC9 136 Z28	EC G37 1/0 0.7Z	Y1.R	136	4K/8K	27000/62000	3.67/8.43
EC9 204 Z20	EC G25 1/0 0.5Z	Y1.R	204	4K	18000	3.67
EC11 136 Z20	EC H37 1/0 0.5Z	Y1.R	136	4K/8K	27000/62000	3.67/8.43
EC11 204 Z20	EC H25 1/0 0.5Z	Y1.R	204	4K	18000	3.67
EC13 272 Z20	EC K18 1/0 0.6Z	Y1.R	272	8K	31000	8.4

---
