| Model | 4G80 |
| Engine | Gasoline/Diesel |
| Capacity | 2-3hr/mu |
| Weight(with motor) | 130kg |
| Dimension | 1500*1200*800mm |
| Power | 7.5hp/8.5hp |
| Placing type | Sidewise |
| Cutting Width(mm) | 900/1000/1200mm |
| Weight | 380KGS |
| Total loss rate | <1% |

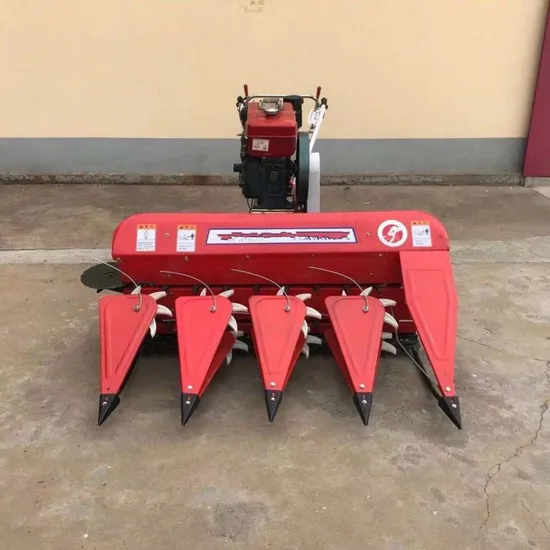

| Mower, also known as wheat and rice harvester, pepper harvester, this machine is a new product developed by our factory, the product is simple, easy to use, small, light weight, small size, with Jf68 walking tractor can be used, can harvest rice, three wheat and other single upright crops. Harvest 2-3 acres per hour. Product characteristics The cutting machine is composed of two parts: a matching host machine and a cutting machine. It is mainly used for harvesting wheat, rice and other platycodon crops, suitable for platform topography, plant height of 0.5~1.5 meters, stem diameter (less than 45°) wind less than 4, non-rainy day operation. The power output shaft of the cutter is transmitted to the cutting table gearbox through the transmission shaft, and is transmitted to the eccentric crank sliding frame mechanism through the transmission claw clutch and a pair of bevel gears to drive the cutter, and is transmitted to the drive shaft of the conveyor chain through the sprocket chain, thereby driving the movement of the upper and lower conveyor chain. The straw belt is driven by the star wheel of the straw lifter. The motion of the star wheel of the grass lifter is driven by the tooth extraction of the conveyor chain. Description of main parameters: Dimensions (length * width * height) : 2.1*1.1*1.0 Cutting width (m) : 0.8, 1, 1.2, 1.5 Supporting power: zd-gs-168 Production efficiency (mu/hour) : 2-3 Total loss rate (%) : Rice. Mic <1 Laying Angle (degree) : 90 ± 20 Weight (KG) : 90 Product advantages: 1 The main machine is equipped with a new type of micro-cultivator, light and convenient, especially suitable for mountainous use, the whole machine is 180 kg, easier to operate than the driven walking tractor. 2. The cutting table uses a high temperature wear-resistant chain drive, not the traditional belt drive. 3. The cutting table bracket is made of round steel, not ordinary steel pipe, more durable anticorrosion and rust prevention. 4. Our company has a special series of spray painting equipment and professionals, there will be no other manufacturers paint rust phenomenon. 5. Factory giveaway wearing parts, so that you have no worries. Light weight, small size, large power, reliable performance, easy operation and other characteristics, favored by customers, products sell well in China and Southeast Asia, Africa, South America and other regions. |
