US$10,535.00
1-4 set/sets
Basic Info.
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Automatic Grade
Semiautomatic
Max.Swing Dia.Over Bed
500mm
Max.Swing Dia.Over Slide
290mm
Maximum Tuning Diameter (Disc)
500mm
Max. Work Piece Length
850mm
Maximum Turning Length
850/1350/1850mm
Spindle Speed
45-180/180-750/600-1600r/Min
Spindle Type
Stepless Speed Regulation
Spindle Motor Power
7.5kw
X Axis Rapid Traverse
6mm
Z Axis Rapid Traverse
8mm
Machine Dimension/Lxwxh)
2750X1700X1820
Tool Holder Standard Configuration
Electric Four-Station Tool Holder
Transport Package
Wood Package/Wood Frame
Production Capacity
200 Pieces/Month
Packaging & Delivery
Package Size
275.00cm * 170.00cm * 182.00cm
Package Gross Weight
2700.000kg
Product Description

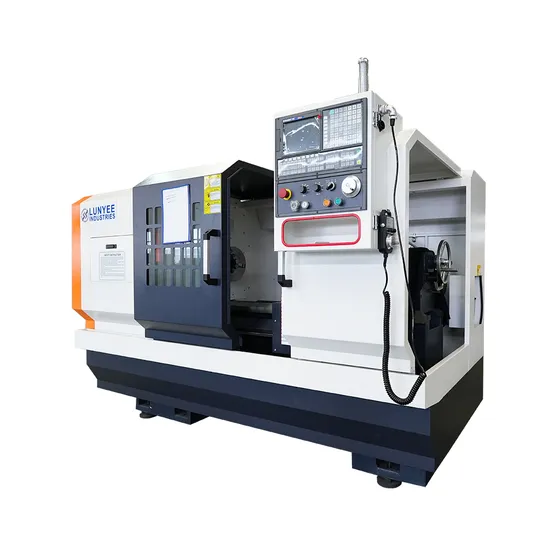

Stepless Speed Regulation Hydraulic Tailstock 850mm Work Length Ck6150b CNC Mini Lathe Machine Product Description
Detailed Photos
Product Parameters
| Specifications | CK6150B |
| Spindle nose | A2-8/A2-11 |
| Spindle type | stepless speed regulation |
| Chuck type | manual chuck |
| Chuck size | 250/320/380 |
| X axis rapid traverse | 6m/min |
| Z axis rapid traverse | 8m/min |
| X axis servo motor torque | 5/7.5N.m |
| Z axis servo motor torque | 7.5/10/15N.m |
| X axis travel | 280mm |
| Z axis travel | 1000/1500/2000mm |
| Capacity of tool post | 4 |
| Tool shank size | 25x25mm*mm |
| Tail stock quill travel | 150mm |
| Total rated power | 11/12/13KW |
| Total rated current | 23/26/29 |
| Net weight | 2700kg |
| Machine dimension/LxWxH) | 2750x1700x1820 mm |
Company Profile
FAQ
Q: Are you trading company or manufacturer?
A: We are the manufacturer for 15 years in China.
Q:How can I choose the most suitable machines?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production→cargo ready → balance/delivery → further cooperation.
Q: Did you test all the goods before they were shipped?
A: Yes, we test every product before delivery, the quality can be fully guaranteed.
Q:Do you accept product customization?
A:Yes, we will try our best to meet your requirements.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted, Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
Q: Is your price competitive?
A: Only good quality product we supply. Surely we will give you best factory price based on superior product and service.
If you have another question, please feel free to contact us.
>>
