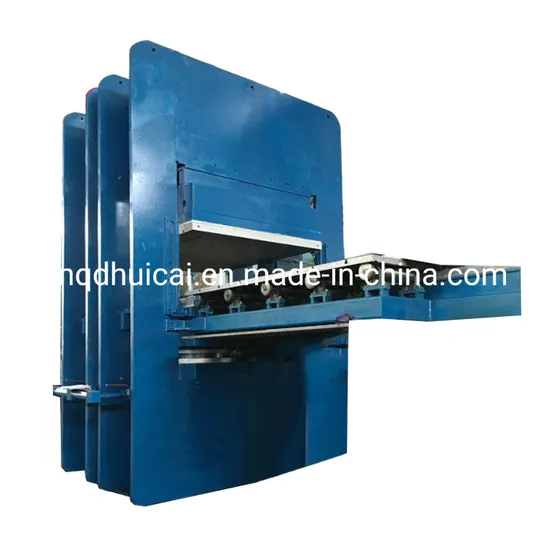

Rubber Liners Lifter Bar Vulcanizing Press Machine

Product Description

Why choose our company?
1.AAA grade credit enterprise.
2.With 14 years experience in manufacturing rubber machines has become one of the biggest company in China.
3.Exported to more than 20 contries with good quality. example: The good year company in Chile...
Management Concept: Survive by Quality, Develop by Credit, Innovate by Technology, Improve by precision.
Times Concept: People Oriented, Scientific Development, Advance with Times, Innovative creation.
Work Concept: Hardworking Practical, Conscientious and Meticulous.
Why choose our this machine?
1. High speed open/close mold, high production efficiency, protect mold.
2. Adopt new sealing material, excellent seal and long life.
3. Matching avanced oil way, reduce energy consumption.
4. Its structure is simpleand application is wide. It is easy to be operated.
Product:

Type	XLB-Q	XLB-Q	XLB-Q	XLB-Q	XLB-Q
Performance index	1200 ×2700×1	1300 ×3000×1	1400 ×8000×2	1400 ×2500×1	2000 ×2500×1
Nominal mounding power (MN)	850	1170	3400	1200	1800
Piston stoke (mm)	250	250	400	500	250
Pressure of plate's unit area (Mpa)	2.6	3	3.1	2.4	2.88
Working layer number	1	1	2	1	1
Main motor power (KW)	5.5	7.5	37.5	19	22
plate clearance (mm)	250	250	200	500	250
Overall size (L×W×H)(mm)	2700 ×1860×2600	3000 ×2100×3360	8000 ×2400×3800	2500 ×3100×3600	3520 ×2900×3550
Weight (kg)	20000	26000	121000	22000	55000
Plate specification (mm)	1200×2700	1300×3000	1400×80000	2000×2500	2000×3200

----------------------------------------------------------------------------------------------------------------------------------
If you have any inquiry, please contact us!
Contact persion: Amber Tan

---
