7.5 Kw Poultry Feed Machine Pellet Mill for Sale

Product Description

7.5 kw Poultry Feed Machine Pellet Mill for Sale
Features:

1, reasonable structure design, safety, low noise, will not cause harm to humans

2, the material can dry dry-out, without drying, self-made motors, low energy consumption, high yield.

3, easy to operate, simple and practical, stable

4, for a variety of materials, molds can adjust itself to ensure the suppression effect.

5, with vertical feeding, natural materials fall by gravity, an effective solution to the wood raw material problem of poor mobility

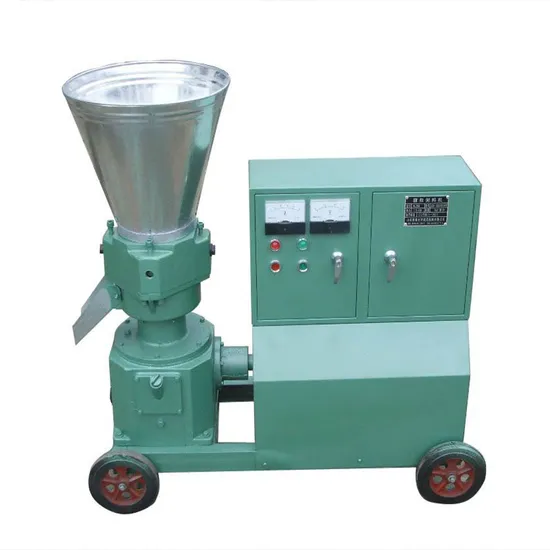

Flat Die Pellet Mill---7.5kw, 380V, 50Hz, Three Phase

1. This machine is driven by 7.5kw, 380V, 50Hz, three phase electrical motor.

2. This machine can both make animal feed pellets and wood sawdust pellets

3. The die hole size can be adjustable, there are 2.5mm, 3mm, 4mm, 5mm, 6mm, 8mm and 10mm for your choose.

4. The length of the final pellets can be adjustable, too.

5. Feed Capacity: 200-300kg/h Sawdust Capacity: 110-140kg/h

Technical Parameters of KL Series Pellet Machines

Model	Power	Voltage V/50Hz	Die Diameter	Die Hole Specification	Saw Dust Capacity	Feed Capacity
KL120C	3KW	380V	120mm	2.5-10mm	40-60kg/h	60-100kg/h
KL150C	4KW	380V	150mm	2.5-10mm	50-90kg/h	90-120kg/h
KL200C	7.5KW	380V	200mm	2.5-10mm	110-140kg/h	200-300kg/h
KL230C	11KW	380V	230mm	2.5-10mm	150-190kg/h	300-400kg/h
KL260C	15KW	380V	260mm	2.5-10mm	220-280kg/h	400-600kg/h
KL300C	22KW	380V	300mm	2.5-10mm	300-360kg/h	600-800kg/h
KL360C	22KW	380V	360mm	2.5-10mm	300-380kg/h	700-900kg/h
KL400C	30KW	380V	400mm	2.5-10mm	400-550kg/h	900-1100kg/h

Raw material size before pelletizing
The maximum size of the materials cannot exceed the diameter of the pelletizing hole. For example, if the diameter of the hole is 6mm, the length of the raw material cannot be more than 6mm. Please ensure the proper size of raw material according to the diameter of the hole. The pellet size can be 2.5-10mm, if you want to make animal feed pellets, 2.5mm and 4mm are ok, if you want to make the wood pellets, 6mm and 8mm are better.
Moisture content before pelletizing
a)The requirement of moisture depends on different kinds of raw materials.
b) The moisture content of sawdust for the KL series die-driving pellet mill is specified to 10%-18%; and MKL series roller-driving pellet mill is 10%-14%. The materials should be mixed evenly.
Working principle of the poultry feed making machine
a) It can process the oil cake and other mixed waste material to granule at one time. And it is columned granule feed and have slippery firm.
b) During the process of producing granule, the temperature can almost reach 70 to 80 centigrade. It can make flour into paste. The inner granule is cooked and fully penetrated, so that not easy to go moldy and degenerative. Then it can be stored for a long time and improve poultry dainty and assimilation function.
Input&output

Kinds of Raw Materials
Pellets as Animal Feed Raw Materials: soybean meal, corn, straw, green fodder, meat and bone meal, whey powder, fish meal, alfalfa, straw, grass, leaves, etc.
Pellets as Stove Fuel Raw Materials: straw, alfalfa, wood waste, cornstalks, cardboard, grass, leaves, clippings,rice husks, branches, wood shavings, sawdust,etc.
