Introduction

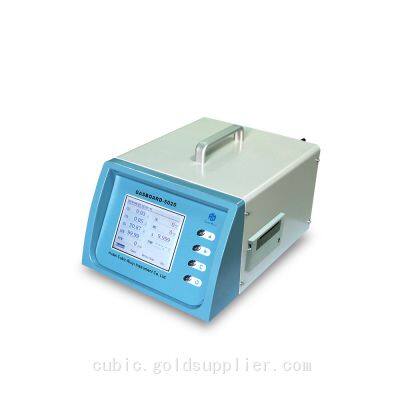

Gasboard-5020 emission gas analyzer is designed for measuring the emissions of all gasoline, LPG or CNG vehicles, it is developed based on dual beam non-dispersion infrared (NDIR) principle to measure CO, CO2, HC, and electrochemical sensors to measure O2 and NO. The test reports can be printed on the built-in printer. Gasboard-5020 is equivalent with OIML R99 class 0 standard, very suitable for cars, motorcycles, and other light duty, heavy duty vehicles exhaust inspection and then optimize it.
Functions:
- CO, CO2, HC, O2, NO gases measurements
- LCD Screen
- Built-in printer
- Magnetic and battery type RPM sensors
Features
1. NDIR gas bench with regulated temperature system, high accuracy, better stability.
2. Equivalent with OIML R99 class 0 standard.
3. Cleanable NDIR gas chamber for easy maintenance.
4. Built-in printer can print out real time measurement data.
5. The engine tachometer can be connected with Gasboard-5020 by RS-232 communication.
6. Mass production ensures fast delivery.
Applications
1. Automotive Inspection station: control of regulatory pollution thresholds: gasoline, LPG, CNG
2. Car repair shop and garage: control of combustion quality compliance with regulatory thresholds
3. Manufacturer & Industrials: checking compliance with gas emission concentration
4. University & lab researches
Specifications
| Measurements | CO2, CO, HC, optional O2, NOx gases. |
| Technology | NDIR, Zirconia |
| Measuring range | CO2:0-20%, CO: 0-10%(*0-15% optional), HC: 0-9999ppm(*0-20000ppm optional), O2: 0-25%, NOx: 0-5000ppm |
| Warm-up time | 10 minutes |
| Response time (T90) | 10 seconds (NDIR) , 30 seconds (Zirconia) |
| Display | LCD display |
| Power supply | 110V-220V±10% 50Hz ±1Hz |
| Operation Temperature | 0~50℃ |
| Dimension | 260×180×360mm |
| Flow rate | 0.7-1.2L/min |
| Weight | 6kg |
| Standard accessories | Sampling pipe and probe, standby filters, RS-232 cable, power cable |
| Options | Built-in printer, RPM sensor, Oil temperature sensor |
For more details, please feel free to contact our sales: sales@gasanalyzer.com.cn.
>>
