Magnetic Drilling Machine JD2-16E Core Driller Machine

Product Description

Product Description
Product Parameters

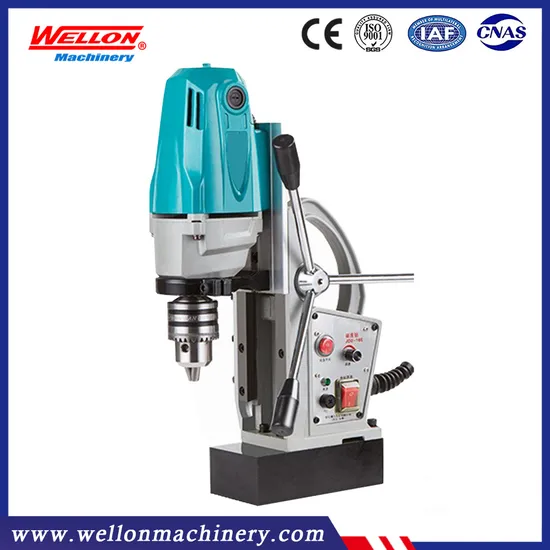

Magnetic drills are a more efficient way to drill a hole through steel,This light weight, portable machine is
held in place by a strong magnetic base plate .so is capable of cutting very accurate holes into steel plate
and castings. For boring, clean and accurate holes these broachers are ideal for industrial use.
Very compact size and lightweight design which comes in handy for overhead use,Easy changechuck -
nothing needs to be removed to insert it.
Technical parameters:

Product model	JD2-16E	JD1-25E	JD2-25E	JD1-30E	JD2-30E
Drill range	16mm	25mm	25mm	30mm	30mm
Rated voltage	110/220V	110/220V	110/220V	110/220V	110/220V
Rated frequency	50-60Hz	50-60Hz	50-60Hz	50-60Hz	50-60Hz
Spindle taper	MT2	MT2	MT2	MT3	MT3
Rotating speed	0-350 rpm	0-350 rpm	0-350 rpm	0-300 rpm	0-300 rpm
Variable speed	Yes	/	Yes	/	Yes
Positive/negative direction	/	/	Yes	/	Yes
Tapping capacity	/	/	M16	/	M18
Max travel	140mm	180mm	180mm	180mm	180mm
Magnetic adhesion	11500N	13000N	13000N	14000N	14000N
Rated unput power	1500W	1500W	1500W	1600W	1600W
Machine weight	14.4kg	26.75kg	26.75kg	26.9kg	26.9kg

Standard accessories:
Drill chuck and arbor
Optional accessories:
Tapping chuck and arbor
Coring attachment
Detailed Photos
Company information
Packaging & Shipping

FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical
Machining Center,
Lathe Machines,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price
and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
