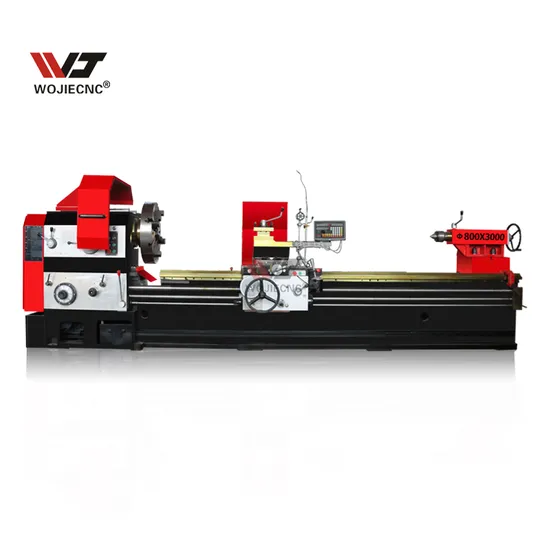

High Safety Big Lathe Machine for Metal Cw6163 Mt6 Tailstock

Product Description

Product Description
This series lathe machine is suitable for internal and external turning, tappering, and other rotating faces, metric, module and inch threads, as well as drilling and pull oil slot. This machine could machining steel, casting, nonferrous metals and etc. The dimensional accuracy of machined workpiece could reach to IT6-IT7, and with good surface roughness. The Machine with handle breaker, easy to operate, safe and reliable.
Product Parameters

Item	Specifications	Units	CW6163E
Machining range	Max.swing over bed	mm	630
	Max.swing over cross slide	mm	350
	Max.turning length	mm	1000-12000
	Bed width	mm	550
Spindle	Spindle nose code	-	C11(D11)
	Diameter of the spindle	mm	105
	Spindle inside taper	mm	Metric120 1:20
	Range of spindle speeds	r/min	10-700
	Spindle speed series	-	four gears to change speed ,no grade to change frequency
Feeding system	Longitudinal and transverse feeding number range	mm/r	56;0.1-12
	Screw pitch	-	12
	Number range of the thread under Metric system	mm	44;1-120
	Number range of the thread under British system	mm	26;14-1inch
	Number range of the module thread	mm	45;M0.5-M60
	Number range of the diametric thread	mm	24 28-1
	Slide fast moving speed	mm/ min	4000
Tool rest	Max cross travel of turret	mm	420
	Max travel of compound slide	mm	200
	Tool section size	mm	32*32
Tailstock	Sleeve diameter of tailstock	mm	100
	Sleeve trip of tailstock	mm	250
	Cone hole taper tailstock sleeve	Morse	Morse 6
	Main motor power	kw	11
Size	L*W*H	mm	4000*1320*1500
Weight	Net weight	kg	4050(1500)

Detailed Photos



Company Profile
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
More than 60,000m² of the factory with more than 150 workers. Strictly QC control with more than 24 steps testing processes 30+ years CNC machine manufacture experience factory 24 hours online service at any time Trade with customers in more than 150 countries around the word. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect. Support ODM OEM. Warranty time is 24 months Certifications
FAQ
1. What are the payment terms?
A: T/T, 30% down payment when ordering, 70% balance before shipment; irrevocable L/C at sight.
After receiving the advance payment, we will start production. After the machine is ready, we will take pictures and videos for you to inspect the machine. After paying the balance, we will send the machine to the designated location according to your instructions.
2. What does your company mainly produce?
A: Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC milling machines, CNC lathes for machining centers, ordinary milling machines, ordinary lathes, hydraulic presses, etc.
3. When is the delivery time?
A: If the machine you ordered is a standard machine, we can prepare the machine within 15 days. If it is some special machines, the delivery time is about 30 days. Some machine models will be in stock, please consult the salesperson for details.
4. What are your trade terms?
A: FOB, CFR, CIF, DDP, DAP, FCA, etc.
5. What is your minimum order quantity and warranty period?
A: The minimum order quantity is 1 set, and the warranty period is 2 years. But we will provide lifetime service for the machine.
6. What is the packaging of the machine?
A: The machine is placed on a metal pallet, covered with a moisture-proof coat inside, and wrapped with plywood all around.

---
